| Brand | ACE |
|---|---|
| Cylinder | 4 |
| HP Category | 2HP |
| Gear Box | 8 Forward + 2 Reverse |
| Brakes | Oil Immersed Brakes |
| Warranty |

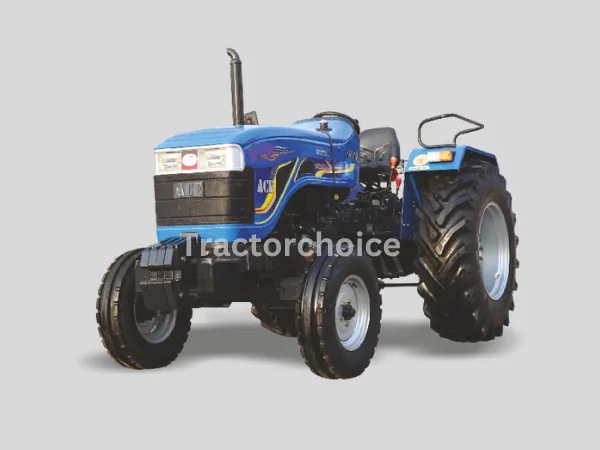

ACE DI 6565 AV TREM IV
ACE DI 6565 AV TREM IV FULL SPECIFICATION
ACE DI 6565 AV TREM IV Engine
No. Of Cylinder
4
HP Category
60.5 HP
Capacity CC
4088 cc
Engine Rated RPM
2000 rpm
Air Filter
Dry Air Cleaner with clogging Sensor
Cooling System
Water Cooled
ACE DI 6565 AV TREM IV Transmission(GearBox)
Clutch Type
Dual clutch
Transmission Type
Constant Mesh
Gear Box
8 Forward + 2 Reverse
Battery
110 Ah - 12V
Alternator
12V- 65 Amp
Forward Speed
2.51 - 31 kmph
Reverse Speed
3.33 - 13.36 kmph
ACE DI 6565 AV TREM IV Brakes
Brake Type
Oil Immersed Brakes
ACE DI 6565 AV TREM IV Steering
Steering Type
Power Steering
ACE DI 6565 AV TREM IV Power Take Off
PTO Type
540 Std. @CRPTO
ACE DI 6565 AV TREM IV Fuel Capacity
Fuel Tank Capacity
65 Litres
ACE DI 6565 AV TREM IV Dimension and Weight
Weight
2340 kg
Wheelbase
2200 MM
Overall Length
3820 MM
Tractor Width
1960 MM
Ground Clearance
425 MM
ACE DI 6565 AV TREM IV Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
2000 kg
3 Point Linkage(Mm)
Automatic Depth and Draft Control
ACE DI 6565 AV TREM IV Tyre Size
Front
7.50 X 16
Rear
16.9 x 28
ACE DI 6565 AV TREM IV Additional Features
Status
Launched
