| Brand | Eicher Tractors |
|---|---|
| Cylinder | 3 |
| HP Category | 45HP |
| Gear Box | 8 Forward + 2 Reverse |
| Brakes | Disc Brakes/Oil Immersed Brakes(Optional) |
| Warranty | 2000 Hours or 2 Year |

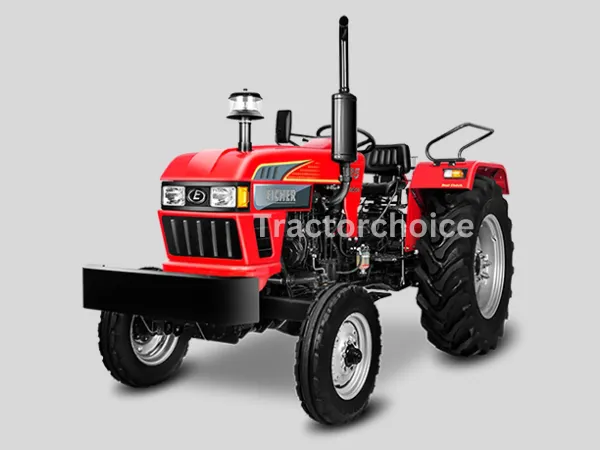

Eicher 485
Eicher 485 Tractor has Dry Type Single or an optional Dual Clutch, which provides smooth and easy functioning. Apart from these features, this tractor model comes with a 48-litre fuel tank and 1200-1850 Kg lifting capacity.
Eicher 485 FULL SPECIFICATION
Eicher 485 Engine
No. Of Cylinder
3
HP Category
45 HP
Capacity CC
2945 CC
Engine Rated RPM
2150 RPM
Air Filter
Oil bath type
PTO HP
38.3 HP
Cooling System
Water Cooled
Eicher 485 Transmission(GearBox)
Clutch Type
Single / Dual (Optional)
Transmission Type
Central shift - Combination of constant & sliding mesh, Side Shi
Gear Box
8 Forward + 2 Reverse
Battery
12 V 75 AH
Alternator
12 V 36 A
Forward Speed
32.3 kmph
Eicher 485 Brakes
Brake Type
Dry Disc / Oil Immersed Brakes ( Optional )
Eicher 485 Steering
Steering Type
Mechanical/Power Steering (optional)
Eicher 485 Power Take Off
PTO Type
Live
PTO rpm
540
Eicher 485 Fuel Capacity
Fuel Tank Capacity
45 litres
Eicher 485 Dimension and Weight
Weight
2140 KG
Wheelbase
2005 MM
Overall Length
3690 MM
Tractor Width
1785 MM
Ground Clearance
385 MM
Eicher 485 Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1650 Kg
3 Point Linkage(Mm)
Draft Position And Response Control Links
Eicher 485 Tyre Size
Front
6.00 x 16
Rear
13.6 x 28 / 14.9 x 28
Eicher 485 Additional Features
Accessories
TOOLS, BUMPHER, TOP LINK
Status
Launched
