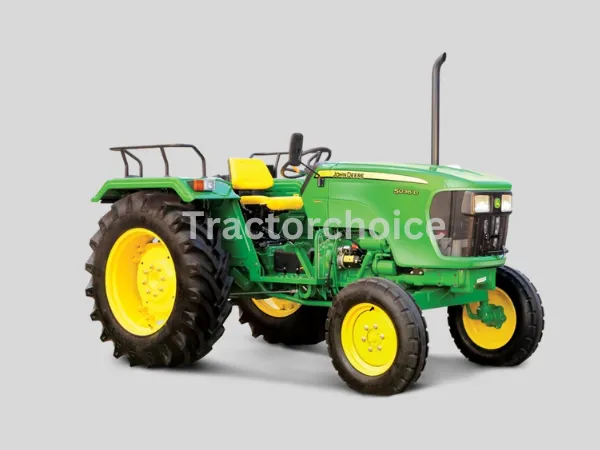

John Deere 5036 D

Rating: 5.00
Brand John Deere
Cylinder 3
HP Category 36HP
Gear Box 8 Forward+4 Reverse
Brakes Oil Immersed Disc Brakes
Warranty 5000 Hours or 5 Year

John Deere 5036 D

A brief explanation about John Deere 5036 D in India


John Deere 5036 D is well-known for its super classy structure and eye-grabbing design. Technologically updated, this tractor offers matchless efficiency at an affordable price. This all-rounder machine is suitable for agriculture operations and other haulage applications. The 5036 D engine supporting this model is a 2900 CC engine (diesel) delivering a potential output of 36 Horsepower. This reliable (diesel) engine is rated at 2100 RPM and is committed to delivering high performance. John Deere 5036 D engine is coupled with a mix match of Collarshift transmission via a single/dual-clutch type. This entire transmission is paired with a 12-speed gearbox setup having 8 F and 4 R gears. With this gear arrangement, it can achieve a top speed of 34.14 Kmph and the lowest speed of 3.13 Kmph, in the forward gears and the highest speed of 14.84 Kmph in the reverse gears. The best part about 5036 D is that it is also available in the 2WD option. In addition, it is fitted with oil-immersed brakes and super-powerful power steering.


Special features:


The engine (diesel) on the 5036 D is a three-cylinder engine unit with 2900 CC capacity. This engine functions to churn out an output of 36 horsepower with 2100 RPM. To increase the overall functioning of this tractor it has 12.4 x 28 / 13.6 x 28 inches and 6 x 16-inches setup in the rear and front tyres respectively. John Deere 5036 D is configured with a six-spline PTO type with 31 horsepower. This tractor is packed with features that make it worth the value and the most efficient model.

This tractor is a full-sized model with a 1970 mm wheelbase and an overall 3400 mm length. The tractor offers 390 mm ground clearance and weighs around 1760 kg.



Why consider buying a John Deere 5036 D in India?


John Deere is a recognized international brand for tractors and farm equipment. John Deere has various outstanding models, but the John Deere 5036 D is among the top offerings by John Deere. This tractor reflects the high quality, reliability and power that users expect. John Deere is committed to providing reliable, durable and efficient engines and its tractors are built to help customers grow their businesses.


At Tractorchoice you get all the latest information related to all types of tractors, implements and other farm equipment. Tractorchoice also provides information as well as assistance on tractor price, tractor comparison, tractor-related photos, videos, blogs and updates.


John Deere 5036 D FULL SPECIFICATION

John Deere 5036 D Engine

No. Of Cylinder

3

HP Category

36 HP

Engine Rated RPM

2100 RPM

Air Filter

Dry type Dual Element

PTO HP

30.6 HP

Cooling System

Coolant Cooled

John Deere 5036 D Transmission(GearBox)

Clutch Type

Single

Transmission Type

Collarshift

Gear Box

8 Forward + 4 Reverse

Battery

12 V 88 AH

Alternator

12 V 40 Amp

Forward Speed

3.13 - 34.18 kmph

Reverse Speed

4.10 - 14.84 kmph

John Deere 5036 D Brakes

Brake Type

Oil immersed Disc Brakes

John Deere 5036 D Steering

Steering Type

Power Steering

John Deere 5036 D Power Take Off

PTO Type

Independent, 6 Splines

PTO rpm

540 @ 2100 ERPM

John Deere 5036 D Fuel Capacity

Fuel Tank Capacity

60 litre

John Deere 5036 D Dimension and Weight

Weight

1760 KG

Wheelbase

1970 MM

Overall Length

3400 MM

Tractor Width

1780 MM

Ground Clearance

390 MM

John Deere 5036 D Lifting Capacity(Hydraulics)

Lifting Capacity in Kg

1600 Kgf

3 Point Linkage(Mm)

Automatic Depth & Draft Control

John Deere 5036 D Tyre Size

Front

6.00 x 16

Rear

12.4 x 28

John Deere 5036 D Additional Features

Accessories

Ballast Weight, Canopy, Canopy Holder, Tow Hook, , Draw bar, Wagon Hitch

Status

Launched
