| Brand | Kartar |
|---|---|
| Cylinder | 3 |
| HP Category | 50HP |
| Gear Box | 8 Forward + 2 Reverse |
| Brakes | Oil Immersed Brakes |
| Warranty | 2000 Hours/2 Year |

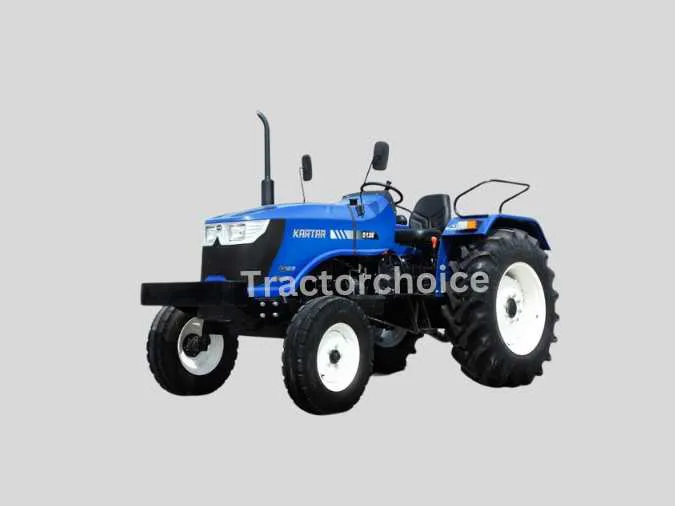

Kartar 5136
Kartar 5136 FULL SPECIFICATION
Kartar 5136 Engine
No. Of Cylinder
3
HP Category
50 HP
Capacity CC
3120 CC
Engine Rated RPM
2200 RPM
Max Torque
188 NM
Air Filter
Dry Type
PTO HP
43.38
Cooling System
Water Cooled
Kartar 5136 Transmission(GearBox)
Clutch Type
Dual
Transmission Type
Partial Constant Mesh
Gear Box
8 Forward + 2 Reverse
Battery
12 V 88 Ah
Alternator
12 V 36 Ah
Forward Speed
2.60 - 33.27 kmph
Reverse Speed
3.68 - 14.50 kmph
Kartar 5136 Brakes
Brake Type
Oil Immersed Brakes
Kartar 5136 Steering
Steering Type
Power Steering
Kartar 5136 Power Take Off
PTO Type
MRPTO
PTO rpm
540 RPM @ 1765 ERPM
Kartar 5136 Fuel Capacity
Fuel Tank Capacity
55 Litres
Kartar 5136 Dimension and Weight
Weight
2080 Kg
Wheelbase
2150 mm
Overall Length
3765 mm
Tractor Width
1868 MM
Ground Clearance
420 MM
Kartar 5136 Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1800 Kg
3 point Linkage
ADDC
Kartar 5136 Tyre Size
Front
7.5 x 16
Rear
14.9 x 28
Kartar 5136 Additional Features
Accessories
Tools , Toplink , Bumper
Status
Launched
