| Brand | Kartar |
|---|---|
| Cylinder | 3 |
| HP Category | 50HP |
| Gear Box | 16 Forward + 4 Reverse |
| Brakes | Oil Immersed Brakes |
| Warranty | 2000 Hours/2 Year |

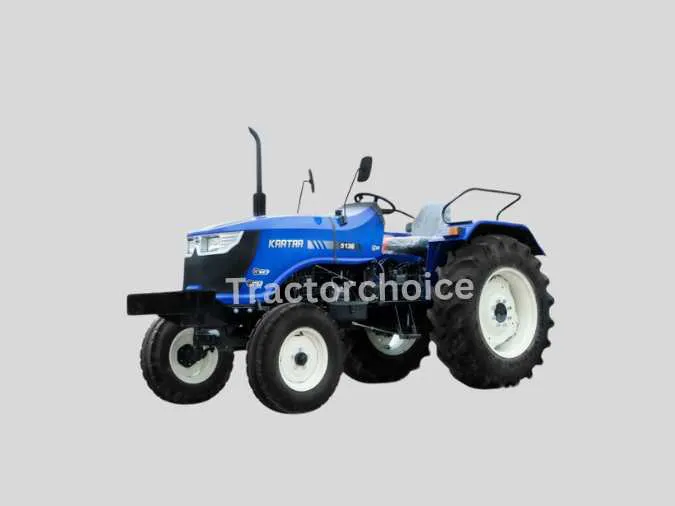

Kartar 5136 Plus CR
Kartar 5136 Plus CR FULL SPECIFICATION
Kartar 5136 Plus CR Engine
No. Of Cylinder
3
HP Category
50 HP
Capacity CC
3120 CC
Engine Rated RPM
2200 RPM
Max Torque
188 NM
Air Filter
Dry Type
PTO HP
43.58
Cooling System
Water Cooled
Kartar 5136 Plus CR Transmission(GearBox)
Clutch Type
Dual
Transmission Type
Partial Constant Mesh
Gear Box
16 Forward + 4 Reverse
Battery
12 V 88 Ah
Alternator
12 V 36 Ah
Forward Speed
2.60 - 33.48 kmph
Reverse Speed
3.68 - 14.50 kmph
Kartar 5136 Plus CR Brakes
Brake Type
Oil Immersed Brakes
Kartar 5136 Plus CR Steering
Steering Type
Power Steering
Kartar 5136 Plus CR Power Take Off
PTO Type
540, 6 Splines , MRPTO
PTO rpm
540 RPM @ 1765 ERPM
Kartar 5136 Plus CR Fuel Capacity
Fuel Tank Capacity
55 Litres
Kartar 5136 Plus CR Dimension and Weight
Weight
2160 Kg
Wheelbase
2150 mm
Overall Length
3765 mm
Tractor Width
1808 MM
Ground Clearance
420 MM
Kartar 5136 Plus CR Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1800 Kg
3 Point Linkage(Mm)
ADDC
Kartar 5136 Plus CR Tyre Size
Front
7.5 x 16
Rear
14.9 x 28
Kartar 5136 Plus CR Additional Features
Status
Launched
