| Brand | Kartar |
|---|---|
| Cylinder | 3 |
| HP Category | 50HP |
| Gear Box | 8 Forward + 8 Reverse |
| Brakes | Oil Immersed Brakes |
| Warranty | 2000 Hours/2 Years |
| Price | ₹ 8.84 to 9.21 Lakh |

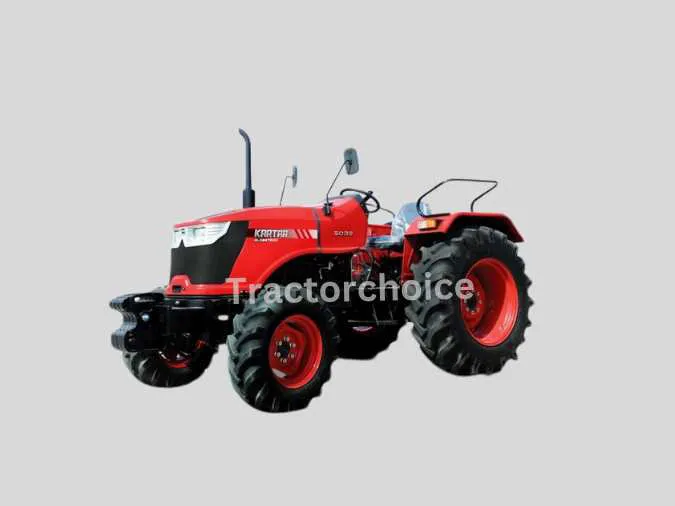

Kartar 5036
Kartar 5036 FULL SPECIFICATION
Kartar 5036 Engine
No. Of Cylinder
3
HP Category
50HP
Capacity CC
3120 CC
Engine Rated RPM
2200 RPM
Max Torque
188 NM
Air Filter
Dry Type
PTO HP
43 HP
Cooling System
Water Cooled
Kartar 5036 Transmission(GearBox)
Clutch Type
Dry, Dual Clutch
Transmission Type
COLLAR SHIFT +SYNCHRO FWD REV
Gear Box
8 Forward + 8 Reverse
Battery
12V 88Ah
Alternator
12V 36Ah
Forward Speed
2.82 - 32.66 kmph
Reverse Speed
2..79 - 32.33 kmph
Kartar 5036 Brakes
Brake Type
Oil Immersed Brakes
Kartar 5036 Steering
Steering Type
Power Steering
Kartar 5036 Power Take Off
PTO Type
6 Splines
PTO rpm
540, 540E
Kartar 5036 Fuel Capacity
Fuel Tank Capacity
55 Litres
Kartar 5036 Dimension and Weight
Weight
1990 KG
Wheelbase
2010 MM
Overall Length
3560 MM
Tractor Width
1728 MM
Ground Clearance
420 MM
Kartar 5036 Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1250 kg
3 Point Linkage(Mm)
Category-II Automatic Depth & Draft Control (ADDC) with auto lift button
Kartar 5036 Tyre Size
Front
7.50 X 16
Rear
14.9 X 28
Kartar 5036 Additional Features
Accessories
Toolkit Toplink Bumper Drawbar Tow Hook
Status
Launched
