| Brand | New Holland Tractors |
|---|---|
| Cylinder | 3 |
| HP Category | 65HP |
| Gear Box | 12 F + 4 R UG / 12 F +3 R Creeper |
| Brakes | Oil Immersed Brakes |
| Warranty | 6000 Hours or 6 Year |

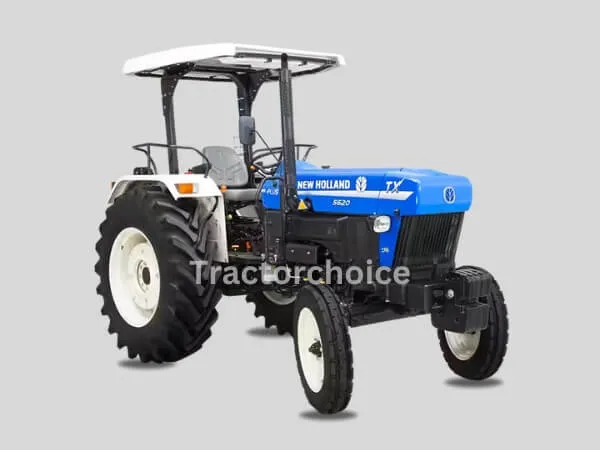

New Holland 5620 Tx Plus-4WD
New Holland 5620 Tx Plus manufactured with Oil Immersed Brakes. These brakes protect the operator from accidents and offer high grip. This tractor model comes with a 2050 MM wheelbase and large Ground Clearance.
New Holland 5620 Tx Plus-4WD FULL SPECIFICATION
New Holland 5620 Tx Plus-4WD Engine
No. Of Cylinder
3
HP Category
65 HP
Engine Rated RPM
2300 RPM
Air Filter
8 inch (0.20 m) Dual Element, Dry Type
PTO HP
64 HP
Cooling System
Water Cooled
New Holland 5620 Tx Plus-4WD Transmission(GearBox)
Clutch Type
Double Clutch with Independent Clutch Lever
Transmission Type
Partial Synchromesh
Gear Box
12 Forward + 3 Reverse
Battery
100 Ah
Alternator
55 Amp
New Holland 5620 Tx Plus-4WD Brakes
Brake Type
Oil Immersed Multi Disk Brake
New Holland 5620 Tx Plus-4WD Steering
Steering Type
Power Steering
New Holland 5620 Tx Plus-4WD Power Take Off
PTO Type
GSPTO / RPTO*
PTO rpm
540
New Holland 5620 Tx Plus-4WD Fuel Capacity
Fuel Tank Capacity
70 litre
New Holland 5620 Tx Plus-4WD Dimension and Weight
Weight
2750 KG
Wheelbase
2045 MM
Overall Length
3750 MM
Tractor Width
1985 MM
Ground Clearance
405 MM
New Holland 5620 Tx Plus-4WD Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
2000 Kgf
3 Point Linkage(Mm)
Automatic depth and draft control
New Holland 5620 Tx Plus-4WD Tyre Size
Front
11.2 X 24
Rear
16.9 X 30
New Holland 5620 Tx Plus-4WD Additional Features
Accessories
6000 hours/ 6 Year
Status
Launched
