New Holland 5630 Tx Plus Trem IV 4WD

Rating: 5.00
Brand New Holland
Cylinder 4
HP Category 75HP
Gear Box 12 Forward + 3 Reverse
Brakes Oil Immersed Multi Disc Brakes
Warranty 6000 Hours or 6 Year

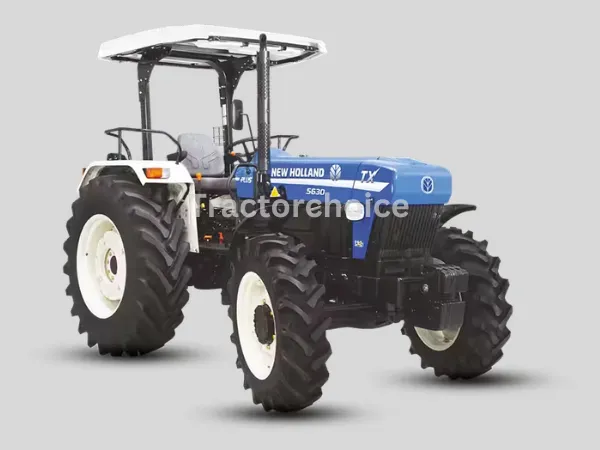

New Holland 5630 Tx Plus Trem IV 4WD


A brief explanation about New Holland 5630 Tx Plus 4WD in India


New Holland 5630 TX Plus 4WD is one model that performs all types of operations and is highly compatible with different farming attachments like Happy seeder, Mulcher, Hay rake and more. It comes with 75 Horsepower and has the potential to deliver efficient mileage.


Special features:


New Holland 5630 Tx Plus 4WD tractor model has powerful gearboxes.

This four-Wheel Drive tractor has an excellent kmph in forward speed.

In addition, this tractor is equipped with a Multi-Plate type Oil Immersed Disc Brake.

This Steering type on the 5630 TX 4WD is smooth Power Steering and has a 2000 Kg load-Lifting capacity.

The size of the Tx Plus tyres are 6.50 X 20 / 11.2 X 24 inches front tyres and 18.4 X 30 inches reverse tyres.


Why consider buying a New Holland 5630 Tx Plus 4WD in India?


New Holland is a renowned brand for tractors and other types of farm equipment. New Holland has many extraordinary tractor models, but the New Holland 5630 Tx Plus 4WD is among the popular offerings by the New Holland company. This tractor reflects the high power that customers expect. New Holland is committed to providing reliable and efficient engines and tractors built to help customers grow their businesses.



At Tractorchoice, you get all the data related to tractors, implements, and other farm equipment and tools. Tractorchoice also offers information and assistance on tractor prices, tractor-related blogs, photos, videos, and updates.


New Holland 5630 Tx Plus Trem IV 4WD FULL SPECIFICATION

New Holland 5630 Tx Plus Trem IV 4WD Engine

No. Of Cylinder

4

HP Category

75 HP

Engine Rated RPM

2300 RPM

Air Filter

8 inch (0.20 m) Dual Element, Dry Type

PTO HP

69 HP

Cooling System

Water Cooled

New Holland 5630 Tx Plus Trem IV 4WD Transmission(GearBox)

Clutch Type

Double Clutch with Independent Clutch Lever

Transmission Type

Fully Constant mesh / Partial Synchro mesh

Gear Box

12 Forward + 3 Reverse

Battery

100 AH

Alternator

55 Amp

Forward Speed

2.14 - 32.07 kmph

Reverse Speed

3.04 - 16.21 kmph

New Holland 5630 Tx Plus Trem IV 4WD Brakes

Brake Type

Multi Plate Oil Immersed Disc Brake

New Holland 5630 Tx Plus Trem IV 4WD Steering

Steering Type

Power Steering

New Holland 5630 Tx Plus Trem IV 4WD Power Take Off

PTO Type

GSPTO / RPTO*

PTO rpm

540

New Holland 5630 Tx Plus Trem IV 4WD Fuel Capacity

Fuel Tank Capacity

70 litre

New Holland 5630 Tx Plus Trem IV 4WD Dimension and Weight

Weight

2835 KH

Wheelbase

2045 MM

Overall Length

3780 MM

Tractor Width

2000 MM

Ground Clearance

435 MM

New Holland 5630 Tx Plus Trem IV 4WD Lifting Capacity(Hydraulics)

Lifting Capacity in Kg

2000 Kgf

3 Point Linkage(Mm)

DRC valve & Isolator valve

New Holland 5630 Tx Plus Trem IV 4WD Tyre Size

Front

12.4 X 24

Rear

18.4 X 30

New Holland 5630 Tx Plus Trem IV 4WD Additional Features

Accessories

Tool, Top Link, Canopy, Hook, Bumpher, Drarbar

Status

Launched
