| Brand | Swaraj Tractors |
|---|---|
| Cylinder | 3 |
| HP Category | 52HP |
| Gear Box | 8 Forward + 2 Reverse |
| Brakes | Oil Immersed/Dry Disc Brakes |
| Warranty | 2000 Hours or 2 Year |

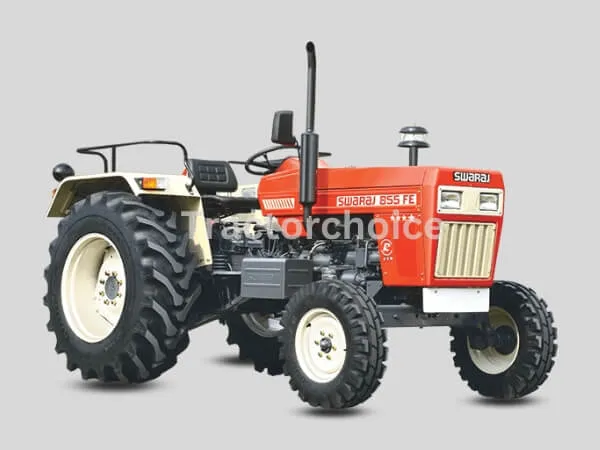

Swaraj 855 FE
Swaraj 855 FE is a 37.28 - 41.01 kW (50-55 HP) category tractor with 3-cylinder water-cooled engine. An iconic tractor designed to deliver pure power, this tractor is designed for tough field operations & hard soil operations. It comes equipped with host of features like direction control valve, multi speed forward & reverse PTO, power steering, dual clutch etc. It is suitable for applications like M B plough, straw making machine, rotavator, genset compressor and combine harvester operations.
Swaraj 855 FE FULL SPECIFICATION
Swaraj 855 FE Engine
No. Of Cylinder
3
HP Category
52 HP
Capacity CC
3307 CC
Engine Rated RPM
2000 RPM
Max Torque
205 NM
Air Filter
3- Stage Oil Bath Type
PTO HP
42.9 HP
Cooling System
Water Cooled
Swaraj 855 FE Transmission(GearBox)
Clutch Type
Single/Dual (Optional)
Transmission Type
Constant mesh
Gear Box
8 Forward + 2 Reverse
Battery
12 V 99 Ah
Alternator
Starter motor
Forward Speed
3.1 - 30.9 kmph
Reverse Speed
2.6 - 12.9 kmph
Swaraj 855 FE Brakes
Brake Type
Dry Disc / Oil Immersed Brakes ( Optional )
Swaraj 855 FE Steering
Steering Type
Mechanical/Power Steering (optional)
Steering Adjustment
Single Drop Arm
Swaraj 855 FE Power Take Off
PTO Type
Multi Speed PTO / CRPTO
PTO rpm
540 / 1000
Swaraj 855 FE Fuel Capacity
Fuel Tank Capacity
60 litre
Swaraj 855 FE Dimension and Weight
Weight
2020 KG
Wheelbase
2050 MM
Overall Length
3420 MM
Tractor Width
1715 MM
Ground Clearance
400 MM
Swaraj 855 FE Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1700 Kg
3 point Linkage
Automatic Depth and Draft Control, I and II type implement pins.
Swaraj 855 FE Tyre Size
Front
6.00 x 16 / 7.50 x 16
Rear
14.9 x 28 / 16.9 X 28 / 13.6 X 28
Swaraj 855 FE Additional Features
Accessories
Tools, Bumpher, Ballast Weight, Top Link, Canopy, Hitch, Drawbar
Status
Launched
