| Brand | ACE |
|---|---|
| Cylinder | 3 |
| HP Category | 50HP |
| Gear Box | 8 Forward + 2 Reverse |
| Brakes | Dry Disc Brakes/Oil Immersed Brakes |
| Warranty | N/A |
| Price | ₹ 6.62 to 6.89 Lakh |

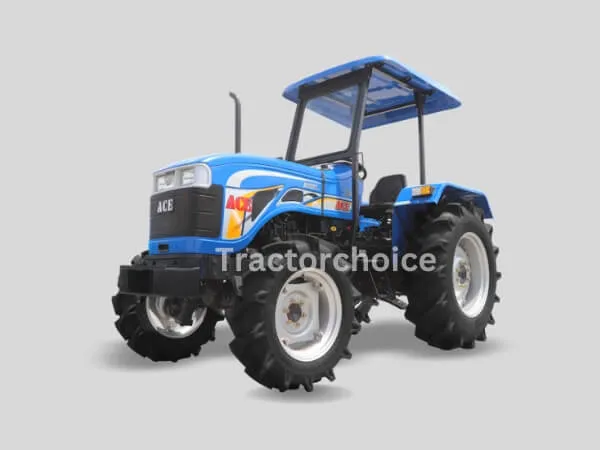

ACE DI-550 NG
ACE DI-550 NG is priced from 6.62 lakh to 6.89 lakh. It comes with a fuel tank capacity of 55 litre liters. Furthermore, it has a lifting capacity of up to 1200 / 1800 Kg, which makes it a great performer. It has 8 Forward + 2 Reverse gears, which work very well. The ACE DI-550 NG is powered by a 3 cylinder engine that generates up to 3065 CC of power, which is quite powerful. Being a drive, this tractor runs very well in the field. It has compact and efficient oil brakes. All these features of the ACE DI-550 NG together provide the best performance in the field. Get ACE DI-550 NG price, features and more information on TractorChoice.
ACE DI-550 NG FULL SPECIFICATION
ACE DI-550 NG Engine
No. Of Cylinder
3
HP Category
50 HP
Capacity CC
3065 CC
Engine Rated RPM
2100 RPM
Air Filter
Dry Air Cleaner
PTO HP
42.5 HP
Cooling System
Water Cooled
ACE DI-550 NG Transmission(GearBox)
Clutch Type
Single / Dual Clutch
Transmission Type
Constant Mesh
Gear Box
8 Forward + 2 Reverse
Battery
12 V 88 AH
Alternator
12 V 42 A
Forward Speed
2.68 – 35.16 kmph
Reverse Speed
3.76 – 14.85 kmph
ACE DI-550 NG Brakes
Brake Type
Dry Disc Brakes / OIB
ACE DI-550 NG Steering
Steering Type
Power Steering
Steering Adjustment
Single Drop Arm
ACE DI-550 NG Power Take Off
PTO Type
6 Splines
PTO rpm
540
ACE DI-550 NG Fuel Capacity
Fuel Tank Capacity
55 litre
ACE DI-550 NG Dimension and Weight
Weight
2010 KG
Wheelbase
1960 MM
Overall Length
3660 MM
Tractor Width
1830 MM
Ground Clearance
430 MM
ACE DI-550 NG Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1200 / 1800 Kg
3 Point Linkage(Mm)
DRAFT , POSITON AND RESPONSE CONTROL LINKS
ACE DI-550 NG Tyre Size
Front
7.50X16
Rear
14.9 x 28
ACE DI-550 NG Additional Features
Accessories
2000 Hours / 2 Year
Status
Launched
