| Brand | ACE Tractors |
|---|---|
| Cylinder | 4 |
| HP Category | 61HP |
| Gear Box | 8 Forward + 2 Reverse |
| Brakes | Mechanical/Oil Immersed Brakes |
| Warranty | N/A |

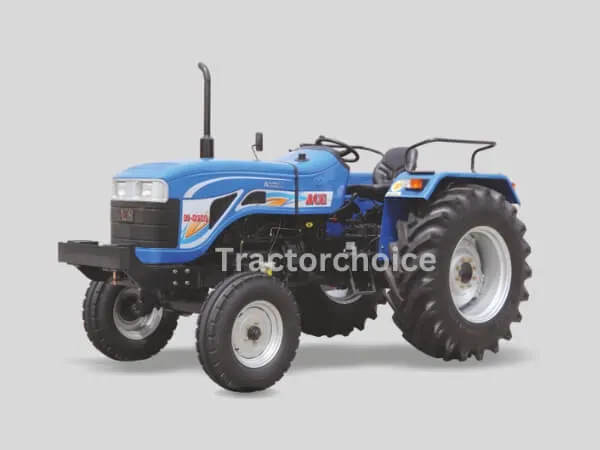

ACE DI-6565
Ace Tractor 6565 comes with the facility of Oil Immersed Brakes. The special feature of Ace 6565 is its lifting capacity of 1800 and also comes with single power take off.
Ace 6565 is a 60 HP Tractor. Ace Tractor 6565 comes with 4 powerful cylinders capable of a good working in fields.
ACE DI-6565 FULL SPECIFICATION
ACE DI-6565 Engine
No. Of Cylinder
4
HP Category
61 HP
Capacity CC
4088 CC
Engine Rated RPM
2200 RPM
Air Filter
Dry type with air cleaner with clogging system
PTO HP
52 HP
Cooling System
Water Cooled
ACE DI-6565 Transmission(GearBox)
Clutch Type
Dual Clutch
Gear Box
8 Forward + 2 Reverse
Battery
12 V 88 AH
Alternator
12 V 42 A
Forward Speed
2.92 - 35.1 kmph
Reverse Speed
3.62 - 14.3 kmph
ACE DI-6565 Brakes
Brake Type
Oil Immersed Brakes
ACE DI-6565 Steering
Steering Type
Power Steering
ACE DI-6565 Power Take Off
PTO Type
Mechenical actuatad hand operated
PTO rpm
540
ACE DI-6565 Fuel Capacity
Fuel Tank Capacity
65 litre
ACE DI-6565 Dimension and Weight
Weight
2280 KG
Wheelbase
2130 MM
Overall Length
3845 MM
Tractor Width
1940 MM
Ground Clearance
465 MM
ACE DI-6565 Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1800 kgs
3 point Linkage
Automatic Depth and Draft Control, Live Hydraulics with Mix Modes
ACE DI-6565 Tyre Size
Front
7.50 x 16
Rear
14.9 x 28 / 16.9 x 28
ACE DI-6565 Additional Features
Accessories
Toplink, Tool, Drawbar, Hitch, Hook
Status
Launched
