| Brand | Eicher |
|---|---|
| Cylinder | 3 |
| HP Category | 40HP |
| Gear Box | 8 Forward + 2 Reverse |
| Brakes | Multi disc oil immersed brakes |
| Warranty | 2000 Hours / 2 Years |

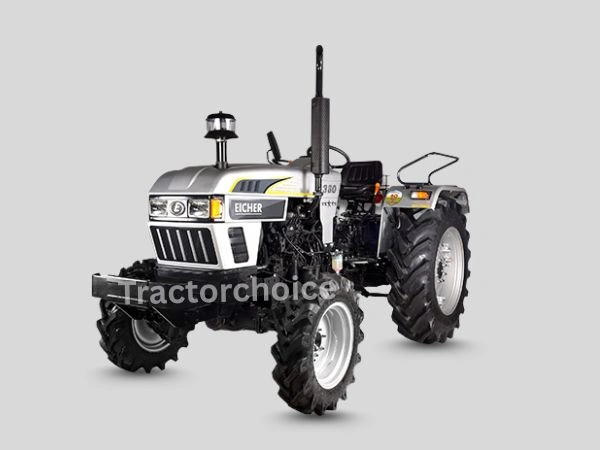

Eicher 380 4WD
Eicher 380 4WD FULL SPECIFICATION
Eicher 380 4WD Engine
No. Of Cylinder
3
HP Category
40 HP
Capacity CC
2500 CC
Engine Rated RPM
2150 RPM
PTO HP
34 HP
Cooling System
Simpson Water Cooled
Eicher 380 4WD Transmission(GearBox)
Clutch Type
Dual clutch
Transmission Type
Side shift Partial constant mesh
Gear Box
8 Forward + 2 Reverse
Battery
12 V 75 Ah
Forward Speed
30.77 kmph
Eicher 380 4WD Brakes
Brake Type
Multi disc oil immersed brakes
Eicher 380 4WD Steering
Steering Type
Power Steering
Eicher 380 4WD Power Take Off
PTO Type
Live, Six splined shaft
PTO rpm
540 RPM @ 1944 ERPM +C20
Eicher 380 4WD Fuel Capacity
Fuel Tank Capacity
46 litre
Eicher 380 4WD Dimension and Weight
Weight
2177 KG
Wheelbase
1968 MM
Overall Length
3478 MM
Tractor Width
1617 MM
Eicher 380 4WD Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1650 kg
3 Point Linkage(Mm)
Draft, position and response control Links fitted with CAT-II (Combi Ball)
Eicher 380 4WD Tyre Size
Front
8.00 X 18
Rear
13.6 X 28
Eicher 380 4WD Additional Features
Accessories
Tipping trailer kit, Bumper, Drawbar, Mobile charger, Top link, Water bottle holder
Status
Launched
