| Brand | Eicher |
|---|---|
| Cylinder | 3 |
| HP Category | 45HP |
| Gear Box | 8 Forward + 2 Reverse |
| Brakes | Multi Disc Oil Immersed Brakes |
| Warranty | 2000 Hours / 2 Years |

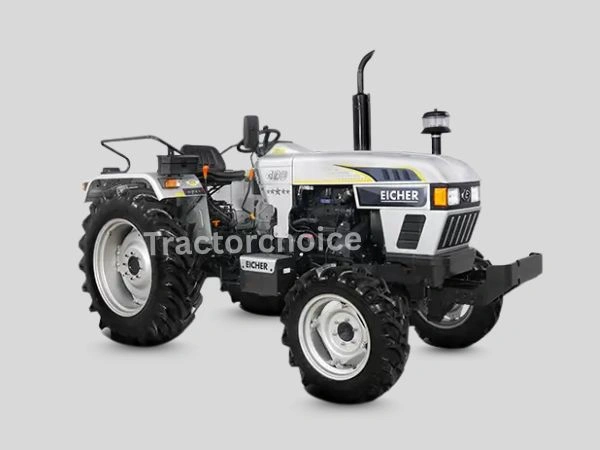

Eicher 480 4WD
Eicher 480 4WD FULL SPECIFICATION
Eicher 480 4WD Engine
No. Of Cylinder
3
HP Category
45 HP
Capacity CC
2500 CC
PTO HP
38.25 HP
Cooling System
Simpson Water Cooled
Eicher 480 4WD Transmission(GearBox)
Clutch Type
Dual clutch
Transmission Type
Side shift Partial constant mesh
Gear Box
8 Forward + 2 Reverse
Battery
12 V 75 Ah
Forward Speed
32.31 kmph
Eicher 480 4WD Brakes
Brake Type
Multi disc oil immersed brakes
Eicher 480 4WD Steering
Steering Type
Power Steering
Eicher 480 4WD Power Take Off
PTO Type
Live, Six splined shaft
PTO rpm
540 RPM @ 1944 ERPM
Eicher 480 4WD Fuel Capacity
Fuel Tank Capacity
45 litres
Eicher 480 4WD Dimension and Weight
Weight
2190 KG
Wheelbase
1965 MM
Overall Length
3745 MM
Tractor Width
1795 MM
Eicher 480 4WD Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1650 kg
3 Point Linkage(Mm)
Draft, position and response control Links fitted with CAT-II (Combi Ball)
Eicher 480 4WD Additional Features
Accessories
Tipping trailer kit, company fitted drawbar, top link
Status
Launched
