| Brand | FARMTRAC |
|---|---|
| Cylinder | 3 |
| HP Category | 38HP |
| Gear Box | 8 Forward + 2 Reverse |
| Brakes | Multi Plate Oil Immersed Brake |
| Warranty | 5000 Hours/ 5 Year |

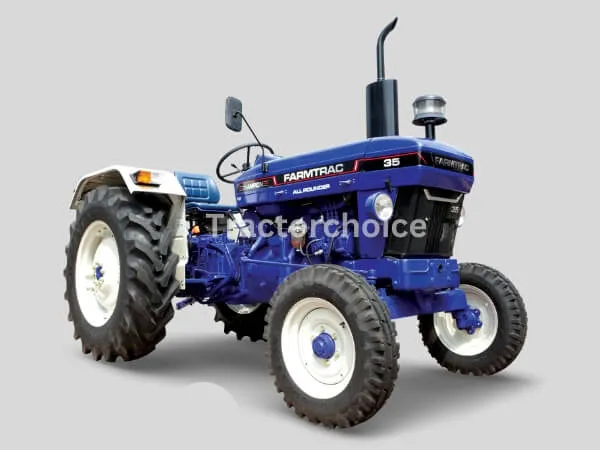

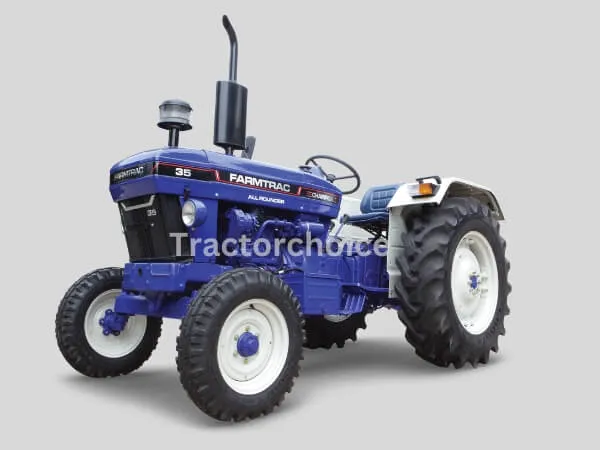

Farmtrac Champion 35 All Rounder
Farmtrac Champion 35 All Rounder FULL SPECIFICATION
Farmtrac Champion 35 All Rounder Engine
No. Of Cylinder
3
HP Category
38 HP
Engine Rated RPM
2000 RPM
Air Filter
Three stage pre oil cleaning
Cooling System
Forced air bath
Farmtrac Champion 35 All Rounder Transmission(GearBox)
Clutch Type
Single
Transmission Type
Fully Constant Mesh
Gear Box
8 Forward + 2 Reverse
Battery
12 V 75 AH
Alternator
12 V 35 A
Forward Speed
2.2-36.3 kmph
Reverse Speed
3.3-13.4 kmph
Farmtrac Champion 35 All Rounder Brakes
Brake Type
Multi Plate Oil Immersed Brake
Farmtrac Champion 35 All Rounder Steering
Steering Type
Mechanical/Power Steering (optional)
Steering Adjustment
Single Drop Arm
Farmtrac Champion 35 All Rounder Power Take Off
PTO Type
Single 540
PTO rpm
1810
Farmtrac Champion 35 All Rounder Fuel Capacity
Fuel Tank Capacity
50 litre
Farmtrac Champion 35 All Rounder Dimension and Weight
Weight
1895(Unballasted) kg
Wheelbase
2100 MM
Overall Length
3315 MM
Tractor Width
1710 MM
Ground Clearance
377 MM
Farmtrac Champion 35 All Rounder Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
ADDC - 1500 kg
3 point Linkage
Draft , Position and Response Control Links
Farmtrac Champion 35 All Rounder Tyre Size
Front
6.00 x 16
Rear
12.4 x 28
Farmtrac Champion 35 All Rounder Additional Features
Accessories
TOOLS, BUMPHER, Ballast Weight, TOP LINK, CANOPY
Status
Launched
