| Brand | JOHN DEERE |
|---|---|
| Cylinder | 3 |
| HP Category | 74HP |
| Gear Box | 12F + 4R (GearPro Speed) |
| Brakes | Oil immersed disc brakes |
| Warranty |

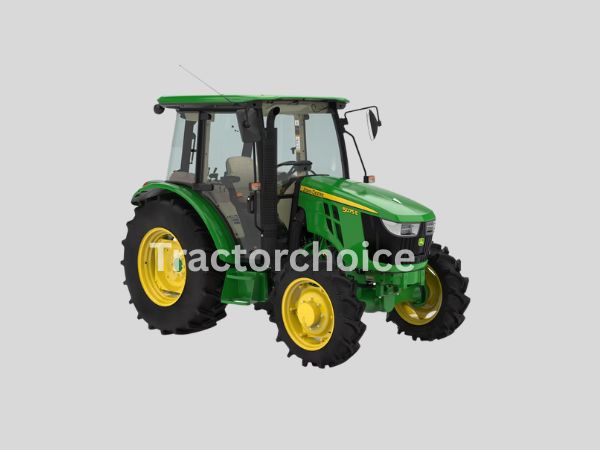

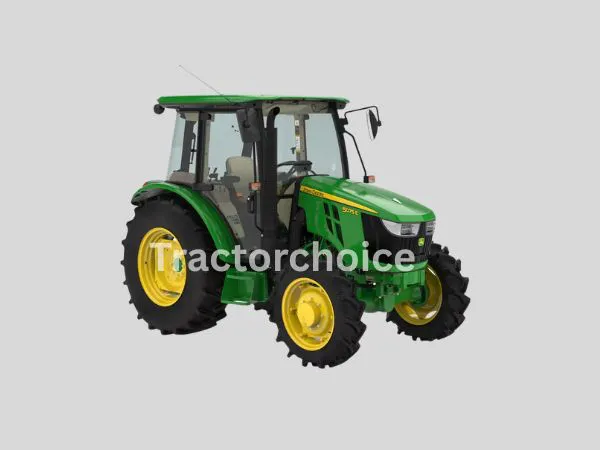

JOHN DEERE Johan Deere 5075E PowerTech
Johan Deere 5075E PowerTech FULL SPECIFICATION
JOHN DEERE Johan Deere 5075E PowerTech Engine
No. Of Cylinder
3
HP Category
74 HP
Engine Rated RPM
2100 RPM
Air Filter
Dry Type, Dual element
PTO HP
57 HP (42 kW)
Cooling System
Coolant cooled with overflow reservoir
JOHN DEERE Johan Deere 5075E PowerTech Transmission(GearBox)
Clutch Type
Dual clutch, Dry clutch, EH clutch (optional)
Gear Box
12F + 4R (GearPro Speed) , 12F + 12R (PowrReverser Speed)
Battery
85 Ah, 12 V battery
Alternator
60 Amp, alternator
Forward Speed
1.9 to 32.6 Kmph
Reverse Speed
1.4 to 31.3 Kmph
JOHN DEERE Johan Deere 5075E PowerTech Brakes
Brake Type
Oil immersed disc brakes
JOHN DEERE Johan Deere 5075E PowerTech Steering
Steering Type
Power steering / Tilt steering option (Open operator station)
JOHN DEERE Johan Deere 5075E PowerTech Power Take Off
PTO Type
540 @ 2100 ERPM
PTO rpm
540 @ 2100 ERPM, 540 @ 1600 ERPM
JOHN DEERE Johan Deere 5075E PowerTech Fuel Capacity
Fuel Tank Capacity
71 ltr & Cab- 82 ltr
JOHN DEERE Johan Deere 5075E PowerTech Dimension and Weight
Weight
2700 kgs
Wheelbase
2050 mm
Overall Length
3678 mm
Tractor Width
1982 mm
Ground Clearance
425 mm
JOHN DEERE Johan Deere 5075E PowerTech Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
2500 KG
JOHN DEERE Johan Deere 5075E PowerTech Tyre Size
Front
Front - 12.4 x 24, 8 PR
Rear
Rear - 18.4 x 30, 12 PR
