| Brand | Swaraj |
|---|---|
| Cylinder | 3 |
| HP Category | 48HP |
| Gear Box | 8 Forward + 2 Reverse |
| Brakes | Multi Plate Oil Immersed Brakes |
| Warranty | 2000 Hours or 2 Year |

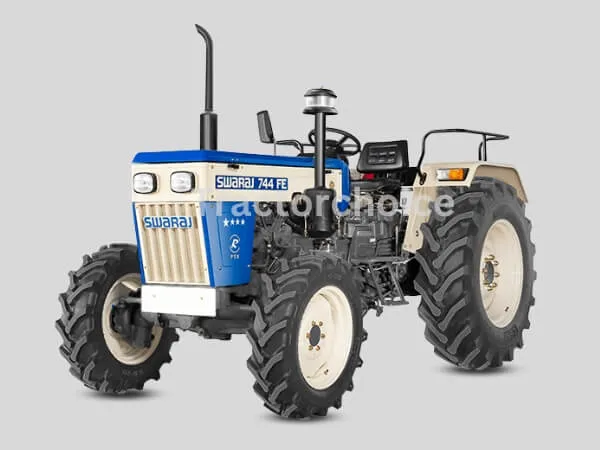

Swaraj 744 FE 4WD
Four wheel drive offers enhanced traction than the conventional two wheel drive thus enabling better work performance and productivity in all kind of tough terrain, wet or hard soil. The new Swaraj 744 FE 4WD has bigger and wider front tyre of 9.50 x 20, for high ground clearance and better traction, independent hand lever for operating PTO clutch for ease of operation and casted FAB enabling better stability. It features drop down front axle with enhanced sealing for better life in puddling.
Swaraj 744 FE 4WD FULL SPECIFICATION
Swaraj 744 FE 4WD Engine
No. Of Cylinder
3
HP Category
48 HP
Capacity CC
3136 CC
Engine Rated RPM
2000 RPM
Max Torque
192 NM
Air Filter
3 Stage Wet Air Cleaner
PTO HP
40.3
Cooling System
Water Cooled
Swaraj 744 FE 4WD Transmission(GearBox)
Clutch Type
Independent PTO Clutch
Transmission Type
Combination Of Constant Mesh & Sliding
Gear Box
8 Forward + 2 Reverse
Forward Speed
3.1 - 29.2 kmph
Reverse Speed
4.3 - 14.3 kmph
Swaraj 744 FE 4WD Brakes
Brake Type
Multi Plate Oil Immersed Brakes
Swaraj 744 FE 4WD Steering
Steering Type
Power Steering
Swaraj 744 FE 4WD Power Take Off
PTO Type
Multi Speed and Revers PTO
PTO rpm
540 @ 1650
PTO Power
40.3
Swaraj 744 FE 4WD Fuel Capacity
Fuel Tank Capacity
55 litre
Swaraj 744 FE 4WD Dimension and Weight
Weight
2345 KG
Wheelbase
2085 MM
Overall Length
3475 MM
Tractor Width
1830 MM
Swaraj 744 FE 4WD Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
2000 Kg
3 Point Linkage(Mm)
DCV
Swaraj 744 FE 4WD Tyre Size
Front
8.00 X 18 / 9.50 X 20
Rear
13.6 X 28 / 14.9 X 28
Swaraj 744 FE 4WD Additional Features
Accessories
6000 hours/ 6 Year
Status
Launched
