| Brand | Kartar |
|---|---|
| Cylinder | 3 |
| HP Category | 40HP |
| Gear Box | 8 Forward + 2 Reverse |
| Brakes | Oil Immersed Brakes |
| Warranty | 2000 Hours/2 Years |

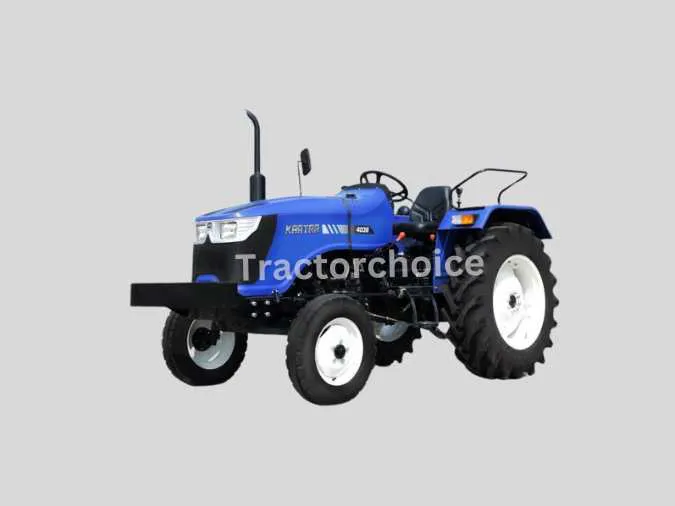

Kartar 4036
Kartar 4036 FULL SPECIFICATION
Kartar 4036 Engine
No. Of Cylinder
3
HP Category
40 HP
Capacity CC
2430 CC
Engine Rated RPM
2200 RPM
Max Torque
150 NM
Air Filter
Dry Type
PTO HP
34.06
Cooling System
Water Cooled
Kartar 4036 Transmission(GearBox)
Clutch Type
Single Clutch
Transmission Type
Partial Constant Mesh
Gear Box
8 Forward + 2 Reverse
Battery
12 V 75 Ah
Alternator
12 V 36 Amp
Forward Speed
31.97 kmph
Reverse Speed
13.90 kmph
Kartar 4036 Brakes
Brake Type
Oil Immersed Brakes
Kartar 4036 Steering
Steering Type
Manual Steering
Kartar 4036 Power Take Off
PTO Type
Live 540 RPM
PTO rpm
540 RPM @ 1765 ERPM
Kartar 4036 Fuel Capacity
Fuel Tank Capacity
55 litres
Kartar 4036 Dimension and Weight
Weight
1955 Kg
Wheelbase
2015 mm
Overall Length
3765 mm
Tractor Width
1740 mm
Ground Clearance
420 mm
Kartar 4036 Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1800 kg
3 Point Linkage(Mm)
Category-II Automatic Depth & Draft Control (ADDC)
Kartar 4036 Tyre Size
Front
6.50 x 16
Rear
13.6 X 28
Kartar 4036 Additional Features
Accessories
Tool Kit, Drawbar, Tow Hook, Top Link , Bumper
Status
Launched
