| Brand | ACE |
|---|---|
| Cylinder | 3 |
| HP Category | 40HP |
| Gear Box | 8 Forward + 2 Reverse |
| Brakes | Oil Immersed/Dry Disc Brakes |
| Warranty | N/A |

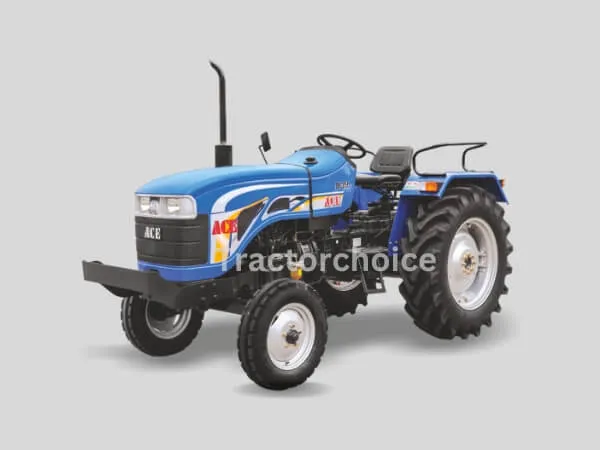

ACE DI-350 NG
The ACE DI-350NG is one of the powerful tractors and offers good mileage
Along with this, ACE DI-350NG has a superb kmph forward speed.
ACE DI-350 NG FULL SPECIFICATION
ACE DI-350 NG Engine
No. Of Cylinder
3
HP Category
40 HP
Capacity CC
2858 CC
Engine Rated RPM
1800 RPM
Air Filter
Dry Type
PTO HP
34 HP
Cooling System
Water Cooled
ACE DI-350 NG Transmission(GearBox)
Clutch Type
Dual / Single Clutch
Transmission Type
Constant Mesh
Gear Box
8 Forward + 2 Reverse
Battery
88 AH 12V
Alternator
12 V 35 A
Forward Speed
2.37 – 28.72 kmph
Reverse Speed
2.96 – 11.69 kmph
ACE DI-350 NG Brakes
Brake Type
DRY DISC Brakes/ OIB
ACE DI-350 NG Steering
Steering Type
Power Steering
Steering Adjustment
Single Drop Arm
ACE DI-350 NG Power Take Off
PTO Type
6 Splines
PTO rpm
540
ACE DI-350 NG Fuel Capacity
Fuel Tank Capacity
55 litre
ACE DI-350 NG Dimension and Weight
Weight
1930 KG
Wheelbase
1960 MM
Overall Length
3660 MM
Tractor Width
1740 MM
Ground Clearance
420 MM
ACE DI-350 NG Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1200 kg
3 Point Linkage(Mm)
Draft, position and response control
ACE DI-350 NG Tyre Size
Front
6.00X16
Rear
13.6X28
ACE DI-350 NG Additional Features
Accessories
TOPLINK, TOOLS
Status
Launched
