| Brand | Kartar |
|---|---|
| Cylinder | 3 |
| HP Category | 50HP |
| Gear Box | 8 Forward + 8 Reverse |
| Brakes | Oil Immersed Brakes |
| Warranty | 2000 Hours/2 Year |

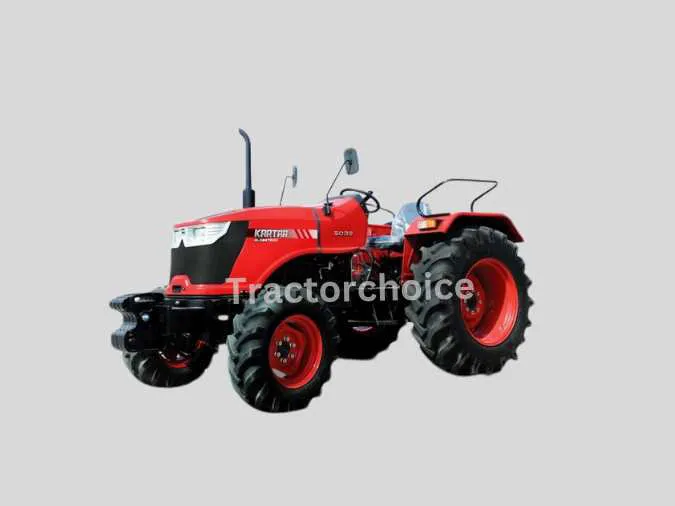

Kartar 5036 4WD
Kartar 5036 4WD FULL SPECIFICATION
Kartar 5036 4WD Engine
No. Of Cylinder
3
HP Category
50 HP
Capacity CC
3120 CC
Engine Rated RPM
2000 RPM
Max Torque
188 NM
Air Filter
Dry Type
PTO HP
43.4 HP
Cooling System
Water Cooled
Kartar 5036 4WD Transmission(GearBox)
Clutch Type
Dual clutch
Transmission Type
Carraro
Gear Box
8 Forward + 8 Reverse
Battery
12 V 88 Ah
Alternator
12 V 36 Ah
Forward Speed
32.66 kmph
Reverse Speed
32.33 kmph
Kartar 5036 4WD Brakes
Brake Type
Oil Immersed Brakes
Kartar 5036 4WD Steering
Steering Type
Power Steering
Kartar 5036 4WD Power Take Off
PTO Type
6 Splines
PTO rpm
540 RPM @ 1728 ERPM, 540E @ 1251 ERPM
Kartar 5036 4WD Fuel Capacity
Fuel Tank Capacity
55 Litres
Kartar 5036 4WD Dimension and Weight
Weight
2080 KG
Wheelbase
2150 MM
Overall Length
3765 MM
Tractor Width
1868 MM
Ground Clearance
420 MM
Kartar 5036 4WD Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1400 Kg
3 Point Linkage(Mm)
ADDC
Kartar 5036 4WD Tyre Size
Front
8.3 x 20
Rear
14.9 x 28
Kartar 5036 4WD Additional Features
Accessories
2000 Hours / 2 Year
Status
Launched
