| Brand | New Holland |
|---|---|
| Cylinder | 3 |
| HP Category | 50HP |
| Gear Box | 8 Forward + 2 Reverse /8 forward + 8 Reverse/16 Forward + 4 Reverse/16 Forward + 16 Reverse |
| Brakes | Mech. Actuated Real OIB |
| Warranty | 6000 Hours or 6 Year |

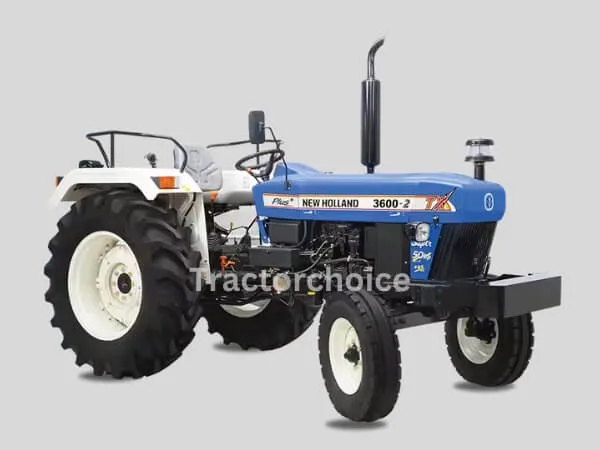

New Holland 3600-2 Tx Super-4WD
New Holland 3600-2 Tx Super-4WD FULL SPECIFICATION
New Holland 3600-2 Tx Super-4WD Engine
No. Of Cylinder
3
HP Category
50 HP
Capacity CC
2931 CC
Engine Rated RPM
2100 RPM
Air Filter
Wet Type with Pre-cleaner
PTO HP
46 HP
New Holland 3600-2 Tx Super-4WD Transmission(GearBox)
Clutch Type
Double Clutch with Independent PTO Clutch Lever
Transmission Type
Constant Mesh AFD
Gear Box
8 Forward + 2 Reverse /8 forward + 8 Reverse/16 Forward + 4 Reverse/16 Forward + 16 Reverse
Battery
88 Ah
Alternator
45 Amp
Forward Speed
2.80-31.02 kmph
Reverse Speed
2.80-10.16 kmph
New Holland 3600-2 Tx Super-4WD Brakes
Brake Type
Real Oil Immersed Multi Disk Brake
New Holland 3600-2 Tx Super-4WD Steering
Steering Type
Power Steering
New Holland 3600-2 Tx Super-4WD Power Take Off
PTO Type
Std & Rev PTO & Eptraa PTO*
PTO rpm
540
New Holland 3600-2 Tx Super-4WD Fuel Capacity
Fuel Tank Capacity
55 litre
New Holland 3600-2 Tx Super-4WD Dimension and Weight
Weight
2145 KG
Wheelbase
2040 MM
Overall Length
3610 MM
Tractor Width
1810 MM
Ground Clearance
385 MM
New Holland 3600-2 Tx Super-4WD Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1800 Kgf
New Holland 3600-2 Tx Super-4WD Tyre Size
Front
9.50 X 20 / 9.50 X 24
Rear
14.9 X 28 / 15.9 X 28
New Holland 3600-2 Tx Super-4WD Additional Features
Accessories
6000 hours/ 6 Year
Status
Launched
