| Brand | Massey Ferguson Tractors |
|---|---|
| Cylinder | 3 |
| HP Category | 36HP |
| Gear Box | 6 Forward+ 2 Reverse / 8 Forward + 2 Reverse (Optional) |
| Brakes | Dry Disc Brakes |
| Warranty | 2100 HOURS OR 2 Year |

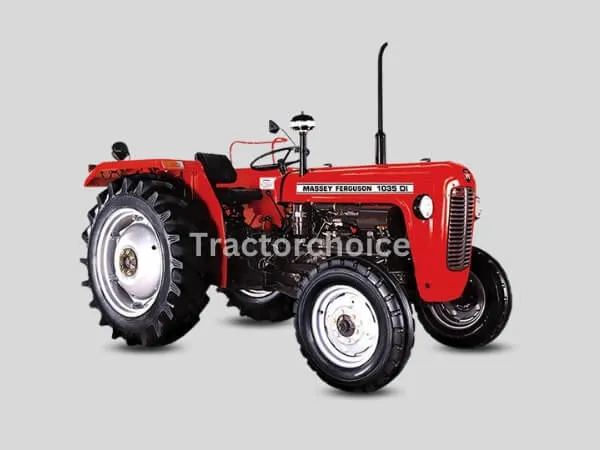

Massey Ferguson Tractors Massey Ferguson 1035 DI
Massey gives a warranty of 2 years or 2000 hours on their model 1035 DI Massey Ferguson. Tractor Massey Ferguson 1035 is a popular tractor among farmers.
Massey Ferguson 1035 DI FULL SPECIFICATION
Massey Ferguson Tractors Massey Ferguson 1035 DI Engine
No. Of Cylinder
3
HP Category
36 HP
Capacity CC
2400 CC
Air Filter
Oil bath type
PTO HP
30.6 HP
Cooling System
Water Cooled
Massey Ferguson Tractors Massey Ferguson 1035 DI Transmission(GearBox)
Clutch Type
Single
Transmission Type
Sliding mesh
Gear Box
6 Forward+ 2 Reverse / 8 Forward + 2 Reverse (Optional)
Battery
12 V 75 AH
Alternator
12 V 36 A
Forward Speed
23.8 kmph
Massey Ferguson Tractors Massey Ferguson 1035 DI Brakes
Brake Type
Dry disc brakes (Dura Brakes)
Massey Ferguson Tractors Massey Ferguson 1035 DI Steering
Steering Type
Mechanical
Massey Ferguson Tractors Massey Ferguson 1035 DI Power Take Off
PTO Type
Live, Single-speed PTO
PTO rpm
540 RPM @ 1650 ERPM
Massey Ferguson Tractors Massey Ferguson 1035 DI Fuel Capacity
Fuel Tank Capacity
47 litre
Massey Ferguson Tractors Massey Ferguson 1035 DI Dimension and Weight
Weight
1713 KG
Wheelbase
1830 MM
Overall Length
3120 MM
Tractor Width
1675 MM
Ground Clearance
340 MM
Massey Ferguson Tractors Massey Ferguson 1035 DI Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1100 kgf
3 point Linkage
Draft, position and response control
Massey Ferguson Tractors Massey Ferguson 1035 DI Tyre Size
Front
6.00 x 16
Rear
12.4X28 / 13.6X28 (OPTIONAL)
Massey Ferguson Tractors Massey Ferguson 1035 DI Additional Features
Accessories
Tools, Top Link
Status
Launched
