| Brand | New Holland Tractors |
|---|---|
| Cylinder | 3 |
| HP Category | 50HP |
| Gear Box | 8 Forward + 2 Reverse/8 forward + 8 Reverse |
| Brakes | Mech. Actuated Real OIB |
| Warranty | 6000 Hours or 6 Year |

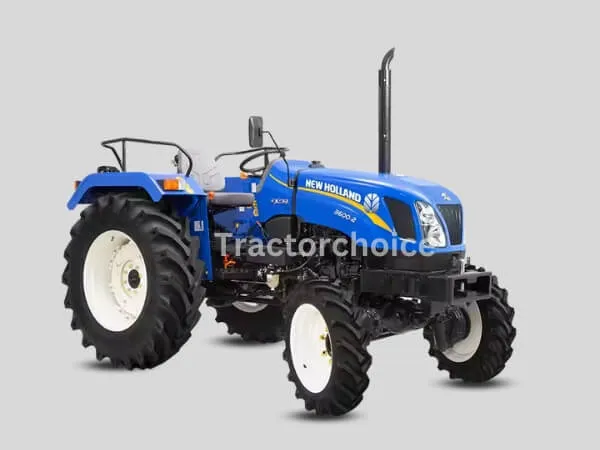

New Holland 3600-2 Excel
MAIN FEATURES
- FPT Engine-49.5 HP
- EPTRA PTO
- Independent Clutch Lever
- HP Hydrolic 1800 Kg lifting capacity*
- Straight Axle Planetry Drive
- 8F+8R Speed Synchro Shuttle
- 4WD also available in MHD & STS Axle
- New Holland Skywatch
New Holland 3600-2 Excel FULL SPECIFICATION
New Holland 3600-2 Excel Engine
No. Of Cylinder
3
HP Category
50 HP
Capacity CC
2931 CC
Engine Rated RPM
2100 RPM
Air Filter
Dry Type Air Cleaner
PTO HP
46 HP
Cooling System
Water Cooled
New Holland 3600-2 Excel Transmission(GearBox)
Clutch Type
Double Clutch with Independent PTO Lever
Transmission Type
Constant Mesh AFD
Gear Box
8 Forward + 2 Reverse/8 Forward + 8 Reverse/ 16 Forward + 4 Reverse/ 16 Forward + 16 Reverse
Battery
88 Ah
Alternator
45 Amp
Forward Speed
2.80-31.02 kmph
Reverse Speed
2.80-10.16 kmph
New Holland 3600-2 Excel Brakes
Brake Type
Real Oil Immersed Multi Disk Brake
New Holland 3600-2 Excel Steering
Steering Type
Power Steering
New Holland 3600-2 Excel Power Take Off
PTO Type
Std, Rev PTO & Eptraa PTO*
PTO rpm
540
New Holland 3600-2 Excel Fuel Capacity
Fuel Tank Capacity
60 litre
New Holland 3600-2 Excel Dimension and Weight
Weight
1945 KG
Wheelbase
2115/2040 MM
Overall Length
3510/3610 MM
Tractor Width
1810/1720 MM
Ground Clearance
428/370 MM
New Holland 3600-2 Excel Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1800 Kg
3 Point Linkage(Mm)
High Precision
New Holland 3600-2 Excel Tyre Size
Front
6.5 X 16 / 7.5 x 16 / 8 x 18 / 8.3 x 24 / 9.5 X 24
Rear
14.9 X 28 / 15.9 X 28
New Holland 3600-2 Excel Additional Features
Accessories
6000 hours/ 6 Year
Status
Launched
