| Brand | New Holland |
|---|---|
| Cylinder | 3 |
| HP Category | 50HP |
| Gear Box | 8 Forward + 2 Reverse/ 12 Forward + 3 Reverse |
| Brakes | Real Oil Immersed Multi Disk Brake |
| Warranty | 6000 Hours or 6 Year |

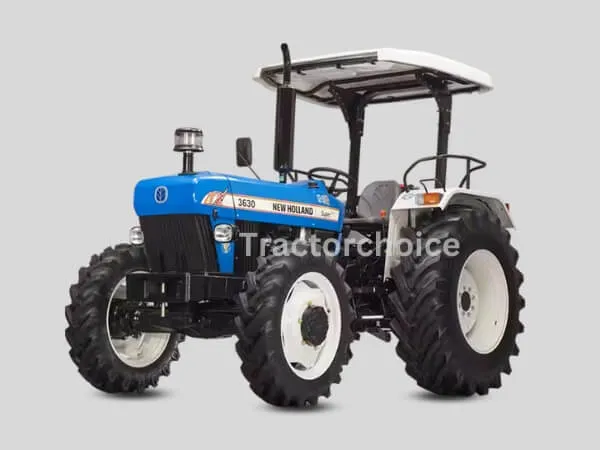

New Holland 3630 TX Super Plus+
MAIN FEATURES
- Inline FIP
- Paddy Sealing*
- Sky Watch*
- 48" Potato front axle*
- Upto 2 Remote Valves*
- Tow hook bracket
- ROPS with Canopy*
- Fibre Fuel Tank
- Dual Spin-on Filters
New Holland 3630 TX Super Plus+ FULL SPECIFICATION
New Holland 3630 TX Super Plus+ Engine
No. Of Cylinder
3
HP Category
50 HP
Engine Rated RPM
2100 RPM
Air Filter
Oil Bath With Pre Cleaner
PTO HP
46 HP
New Holland 3630 TX Super Plus+ Transmission(GearBox)
Clutch Type
Double Clutch with Independent PTO Lever
Transmission Type
Fully Constant mesh / Partial Synchro mesh
Gear Box
8 Forward + 2 Reverse/ 12 Forward + 3 Reverse
Battery
88 Ah
Alternator
45 Amp
Forward Speed
1.72 - 31.02 kmph
Reverse Speed
2.49 - 13.92 kmph
New Holland 3630 TX Super Plus+ Brakes
Brake Type
Real Oil Immersed Multi Disk Brake
New Holland 3630 TX Super Plus+ Steering
Steering Type
Power Steering
New Holland 3630 TX Super Plus+ Power Take Off
PTO Type
GSPTO / RPTO*
PTO rpm
540
New Holland 3630 TX Super Plus+ Fuel Capacity
Fuel Tank Capacity
60 litre
New Holland 3630 TX Super Plus+ Dimension and Weight
Weight
2180 KG
Wheelbase
2040 MM
Overall Length
3465 MM
Tractor Width
1815 MM
Ground Clearance
445 MM
New Holland 3630 TX Super Plus+ Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1700 / 2000 Kg
3 Point Linkage(Mm)
DRC valve & Isolator valve
New Holland 3630 TX Super Plus+ Tyre Size
Front
7.5 X 16
Rear
16.9 x 28
New Holland 3630 TX Super Plus+ Additional Features
Accessories
Clear Lens Headlamps with DRL Signature Light / Metallic Heat Guard
Status
Launched
