| Brand | NEW HOLLAND |
|---|---|
| Cylinder | 3 |
| HP Category | 47HP |
| Gear Box | 8 Forward + 2 Reverse |
| Brakes | Oil Immersed Brakes |
| Warranty | 6000 Hours or 6 Year |

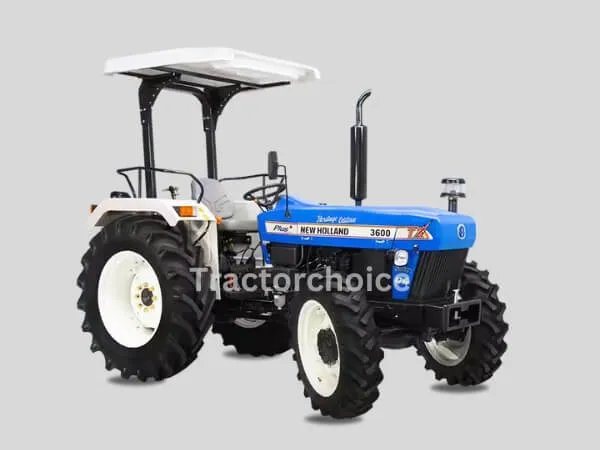

NEW HOLLAND 3600 Tx Heritage Edition-4WD
MAIN FEATURES
- Max useful power - 43hp PTO
- Power & 38.32hp Drawbar Power
- Max Torque - 167.9 Nm
- Eptraa PTO – 7 speeds PTO
- Independent PTO Clutch
- SOFTEK CLUTCH
- Fully Constant Mesh AFD
- HP Hydraulic with Lift-O-Matic &
- 1800 KG Lift Capacity
- Multisensing with DRC Valve
- Straight Axle Planetary Drive
- 4WD MHD Axle
- Double Metal Face sealing in
- Trans. - PTO & Rear Axle
- 8+8 Synchro Shuttle
- Min turning radius - 2.9mt (4WD STS Axle)
3600 Tx Heritage Edition-4WD FULL SPECIFICATION
NEW HOLLAND 3600 Tx Heritage Edition-4WD Engine
No. Of Cylinder
3
HP Category
47 HP
Capacity CC
2700 CC
Engine Rated RPM
2250 RPM
Air Filter
Oil Bath with Pre-Cleaner
PTO HP
43 HP
NEW HOLLAND 3600 Tx Heritage Edition-4WD Transmission(GearBox)
Clutch Type
Single / Dual (Optional)
Transmission Type
Fully Constantmesh AFD
Gear Box
8 Forward + 2 Reverse
Battery
12 V 75 AH
Alternator
35 Amp
Forward Speed
33 kmph
Reverse Speed
11 kmph
NEW HOLLAND 3600 Tx Heritage Edition-4WD Brakes
Brake Type
Real Oil Immersed Brakes
NEW HOLLAND 3600 Tx Heritage Edition-4WD Steering
Steering Type
Power Steering
NEW HOLLAND 3600 Tx Heritage Edition-4WD Power Take Off
PTO Type
Real Oil Immersed Brakes
PTO rpm
540, 540 E, Reverse Pto
NEW HOLLAND 3600 Tx Heritage Edition-4WD Fuel Capacity
Fuel Tank Capacity
46 Liter
NEW HOLLAND 3600 Tx Heritage Edition-4WD Dimension and Weight
Weight
2040 (2WD) & 2255 (4WD) KG
Wheelbase
1955 (2WD) & 2005 (4WD) MM
Overall Length
3590 MM
Tractor Width
1725(2WD) & 1740(4WD) MM
Ground Clearance
425 (2WD) & 370 (4WD) MM
NEW HOLLAND 3600 Tx Heritage Edition-4WD Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1800 Kgf
NEW HOLLAND 3600 Tx Heritage Edition-4WD Tyre Size
Front
9.5 x 24
Rear
13.6 x 28/14.9 x 28
NEW HOLLAND 3600 Tx Heritage Edition-4WD Additional Features
Accessories
Front Bumpher, Adjustable hook, Drawbar
Status
Launched
