| Brand | New Holland |
|---|---|
| Cylinder | 3 |
| HP Category | 35HP |
| Gear Box | 8 Forward + 2 Reverse |
| Brakes | Mechanical/Oil Immersed Brakes |
| Warranty | 6000 Hours or 6 Year |

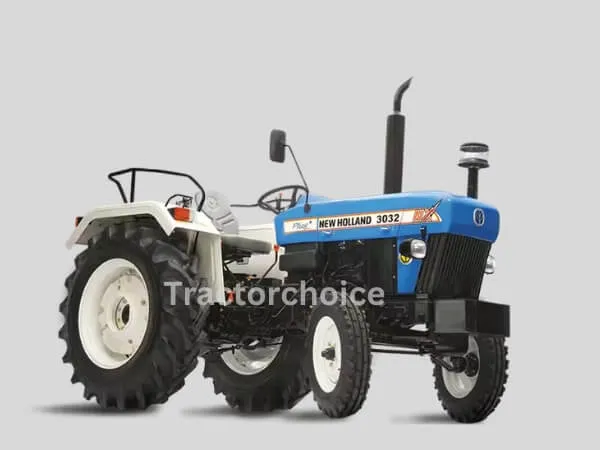

New Holland 3032 NX
New Holland 3032 NX FULL SPECIFICATION
New Holland 3032 NX Engine
No. Of Cylinder
3
HP Category
35 HP
Capacity CC
2365 CC
Engine Rated RPM
2000 RPM
Air Filter
Oil Bath with Pre Cleaner
PTO HP
34 HP
Cooling System
Water Cooled
New Holland 3032 NX Transmission(GearBox)
Clutch Type
Single Clutch
Transmission Type
Constant Mesh AFD Shift
Gear Box
8 Forward + 2 Reverse
Battery
12 V 75 AH
Alternator
35 Amp
Forward Speed
2.92-33.06 kmph
Reverse Speed
3.61-13.24 kmph
New Holland 3032 NX Brakes
Brake Type
Oil Immersed Multi Disc Brake
Turning Radius with Brakes
2810 MM
New Holland 3032 NX Steering
Steering Type
Mechanical/Power Steering (optional)
Steering Adjustment
Single Drop Arm
New Holland 3032 NX Power Take Off
PTO Type
6 Spline
PTO rpm
540S , 540E
New Holland 3032 NX Fuel Capacity
Fuel Tank Capacity
42 litre
New Holland 3032 NX Dimension and Weight
Weight
1720 KG
Wheelbase
1930 MM
Overall Length
3290 MM
Tractor Width
1660 MM
Ground Clearance
370 MM
New Holland 3032 NX Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1500 Kg
3 Point Linkage(Mm)
Automatic Depth & Draft Control, Lift- O-Matic, Response Control, Multiple Sensitivity Control, Isol
New Holland 3032 NX Tyre Size
Front
6.00 x 16
Rear
12.4 x 28 / 13.6 x 28
New Holland 3032 NX Additional Features
Accessories
Tools, Bumpher, Ballast Weight, Top Link, Canopy, Hitch, Drawbar
Status
Launched
