| Brand | New Holland |
|---|---|
| Cylinder | 4 |
| HP Category | 90HP |
| Gear Box | 12 Forward + 12 Reverse |
| Brakes | Mechanically Actuated Oil Immersed Multi Disc Brakes |
| Warranty | 6000 Hours or 6 Year |

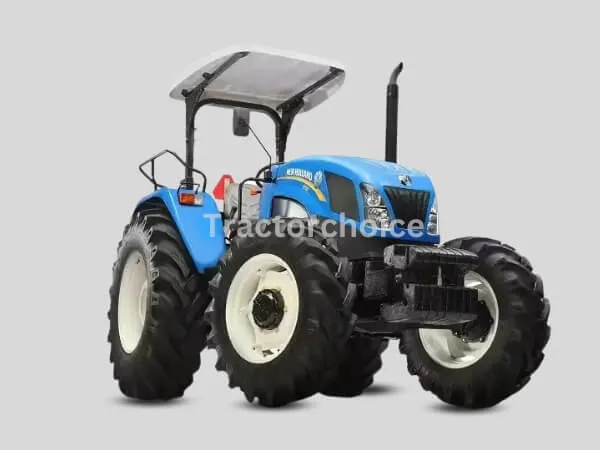

New Holland Excel 9010
New Holland 9010 is a 90 HP tractor, which is very powerful as it also has 4 Cylinders making it better on field. New Holland 9010 tractor. We guarantee you about the reliability of the information and wish you the best choice ahead.
New Holland Excel 9010 FULL SPECIFICATION
New Holland Excel 9010 Engine
No. Of Cylinder
4
HP Category
90 HP
Capacity CC
2900 CC
Engine Rated RPM
2200 RPM
Air Filter
8" Dry type with dual element
PTO HP
76.5 HP
Cooling System
Intercooler
New Holland Excel 9010 Transmission(GearBox)
Clutch Type
Double Clutch- Dry Friction Plate Wet Hydraulic Friction Plates Clutch
Transmission Type
Full Constant Mesh / Full Synchromesh
Gear Box
12 Forward + 12 Reverse
Battery
88 Ah
Alternator
55 Amp
Forward Speed
0.29 - 37.43 kmph
Reverse Speed
0.35 - 38.33 kmph
New Holland Excel 9010 Brakes
Brake Type
Mechanically Actuated Oil Immersed Multi Disc
New Holland Excel 9010 Steering
Steering Type
Power Steering
New Holland Excel 9010 Power Take Off
PTO Type
GRPTO
PTO rpm
540 @ 2198 E RPM
New Holland Excel 9010 Fuel Capacity
Fuel Tank Capacity
90 litre
New Holland Excel 9010 Dimension and Weight
Weight
3120 / 3250 KG
Wheelbase
2283 / 2259 MM
New Holland Excel 9010 Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
2500 Kg
3 Point Linkage(Mm)
DRC valve & Isolator valve
New Holland Excel 9010 Tyre Size
Front
12.4 x 24
Rear
18.4 X 30
New Holland Excel 9010 Additional Features
Accessories
6000 hours/ 6 Year
Status
Launched
