| Brand | New Holland Tractors |
|---|---|
| Cylinder | 3 |
| HP Category | 60HP |
| Gear Box | 12 Forward + 12 Reverse |
| Brakes | Mechanically Actuated Oil Immersed Multi Disc |
| Warranty | 6000 Hours or 6 Year |

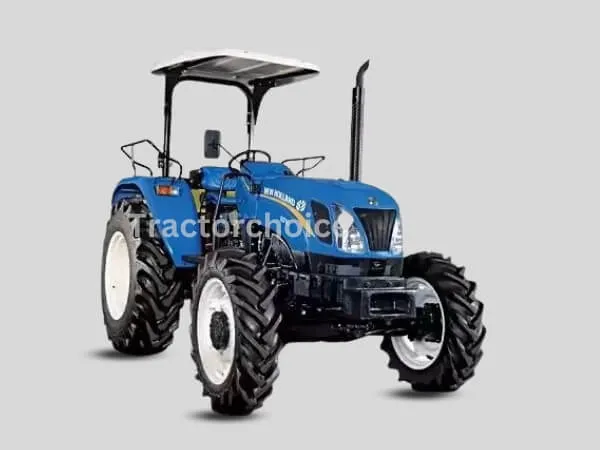

New Holland Excel 6010
New Holland Excel 6010 FULL SPECIFICATION
New Holland Excel 6010 Engine
No. Of Cylinder
3
HP Category
60 HP
Capacity CC
3600 CC
Engine Rated RPM
2200 RPM
Air Filter
Dry Type
PTO HP
51 HP
Cooling System
Intercooler
New Holland Excel 6010 Transmission(GearBox)
Clutch Type
Double Clutch with Independent Clutch Lever
Transmission Type
Fully Synchromesh with Mechanical Shuttle / Power Shuttle*
Gear Box
12 Forward + 12 Reverse
Battery
100 Ah
Alternator
55 Amp
Forward Speed
0.27 – 36.09 kmph
Reverse Speed
0.32 – 38.33 kmph
New Holland Excel 6010 Brakes
Brake Type
Mechanically Actuated Oil Immersed Multi Disc / Hydraulically Actuated Oil Immersed Multi Disc
New Holland Excel 6010 Steering
Steering Type
Hydrostatic Power Steering
New Holland Excel 6010 Power Take Off
PTO Type
Independent PTO Clutch Lever and reverse PTO
PTO rpm
540E
New Holland Excel 6010 Fuel Capacity
Fuel Tank Capacity
60 litre
New Holland Excel 6010 Dimension and Weight
Weight
2415 / 2630 KG
Wheelbase
2079 / 2010 MM
New Holland Excel 6010 Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
2000/2500 Kg
3 Point Linkage(Mm)
ADDC
Hydraulics Control
Sensomatic24 with 24 sensing points - Lift-O-Matic with Height Limiter - DRC valve & Isolator valve
New Holland Excel 6010 Tyre Size
Front
9.50 x 24 /11.2 x 24
Rear
16.9 x 28
New Holland Excel 6010 Additional Features
Accessories
Creeper Speeds, , Ground Speed PTO, Hydraulically Actuated Oil Immersed Multi Disc Brakes, 4 WD, Rem
Status
Launched
