| Brand | Swaraj |
|---|---|
| Cylinder | 2 |
| HP Category | 25HP |
| Gear Box | 8 Forward + 2 Reverse |
| Brakes | Standard Dry Disc type/Oil Immersed Brakes |
| Warranty | 2000 Hours or 2 Year |

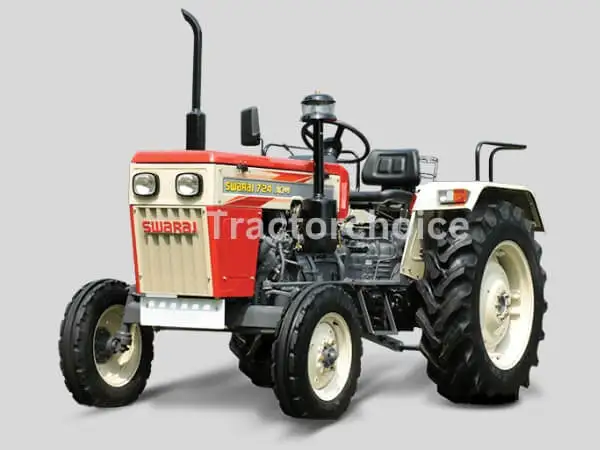

Swaraj 724 XM
Swaraj 724 XM is a 18.64-22.37 kW (25-30 HP) category tractor. It is fitted with powerful & fuel efficient two-cylinder water-cooled engine. It comes equipped with host of features like oil immersed brakes that offer better braking efficiency and quick release coupler that provides ease of connection of tipping trailer. The bigger wheelbase of the tractor makes it highly suitable for haulage and agricultural applications.
Swaraj 724 XM FULL SPECIFICATION
Swaraj 724 XM Engine
No. Of Cylinder
2
HP Category
25 HP
Capacity CC
1823 CC
Engine Rated RPM
1800 RPM
Air Filter
3- Stage Oil Bath Type
PTO HP
22.5 HP
Cooling System
Water Cooled with No loss tank
Swaraj 724 XM Transmission(GearBox)
Clutch Type
Standard Single dry disc friction plate
Transmission Type
Constant mesh
Gear Box
8 Forward + 2 Reverse
Battery
12 V 88 Ah
Alternator
Starter Motor
Forward Speed
2.19 - 27.78 kmph
Reverse Speed
2.74 - 10.77 kmph
Swaraj 724 XM Brakes
Brake Type
Oil Immersed Brakes
Swaraj 724 XM Steering
Steering Type
Mechanical Steering
Steering Adjustment
Single Drop Arm
Swaraj 724 XM Power Take Off
PTO Type
Multi Speed PTO
PTO rpm
540 / 1000
PTO Power
22.5 HP
Swaraj 724 XM Fuel Capacity
Fuel Tank Capacity
35 litre
Swaraj 724 XM Dimension and Weight
Weight
1750 KG
Wheelbase
1935 MM
Overall Length
3320 MM
Tractor Width
1675 MM
Ground Clearance
375 MM
Swaraj 724 XM Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1000 kg
3 Point Linkage(Mm)
Automatic Depth and Draft Control, I &andII type implement pins
Swaraj 724 XM Tyre Size
Front
6.00 x 16
Rear
12.4 x 28
Swaraj 724 XM Additional Features
Accessories
Tools, Bumpher, Ballast Weight, Top Link, Canopy, Drawbar, Hitch
Status
Launched
