| Brand | Eicher |
|---|---|
| Cylinder | 1 |
| HP Category | 25HP |
| Gear Box | 8 Forward + 2 Reverse |
| Brakes | Disc Brakes/Oil Immersed Brakes(Optional) |
| Warranty | 1 Year |

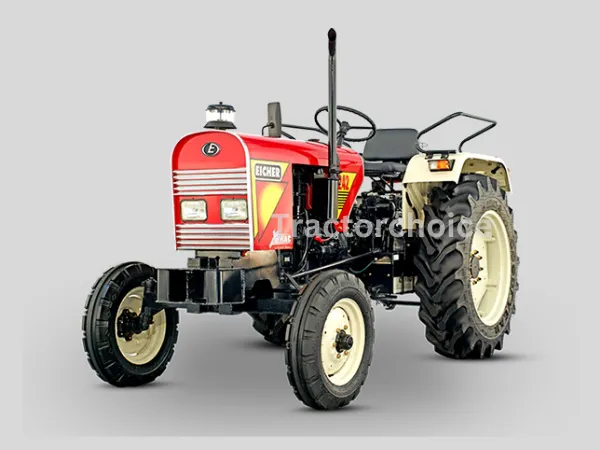

Eicher 242
The powerful gearbox of the tractor model provides work excellence, resulting in high productivity. Eicher 242 tractor has Mechanical Steering with both Dry or oil-immersed Disc Brakes, made for effective performance and braking.
Eicher 242 FULL SPECIFICATION
Eicher 242 Engine
No. Of Cylinder
1
HP Category
25 HP
Capacity CC
1557 CC
PTO HP
21.3 HP
Cooling System
Air Cooled
Eicher 242 Transmission(GearBox)
Clutch Type
Single
Transmission Type
Central shift, Sliding Mesh
Gear Box
8 Forward + 2 Reverse
Battery
12 V 88 AH
Forward Speed
27.61 kmph
Eicher 242 Brakes
Brake Type
Disc Brake /Oil Immersed Brakes (Optional)
Eicher 242 Steering
Steering Type
Mechanical Steering / Power Steering (Optional)
Eicher 242 Power Take Off
PTO Type
Live, Twenty one splined shaft
PTO rpm
1000 RPM @ 1616 ERPM
Eicher 242 Fuel Capacity
Fuel Tank Capacity
35 litre
Eicher 242 Dimension and Weight
Weight
1670 KG
Wheelbase
1880 MM
Overall Length
3150 MM
Tractor Width
1650 MM
Ground Clearance
410 MM
Eicher 242 Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1220 Kg
3 Point Linkage(Mm)
Draft, position and response control
Hydraulics Control
ADDC
Eicher 242 Tyre Size
Front
6.00 x 16
Rear
12.4 x 28
Eicher 242 Additional Features
Accessories
Tipping trailer kit, Drawbar, Top link
Status
Launched
