| Brand | Swaraj |
|---|---|
| Cylinder | 4 |
| HP Category | 42HP |
| Gear Box | 8 Forward + 2 Reverse |
| Brakes | Oil Immersed Brakes |
| Warranty | 6000 Hours Or 6 Years |

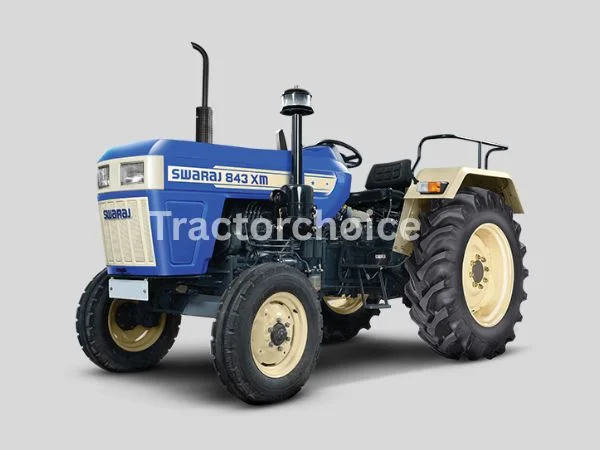

Swaraj 843 XM
Swaraj 843 XM FULL SPECIFICATION
Swaraj 843 XM Engine
No. Of Cylinder
4
HP Category
42 HP
Capacity CC
2730 CC
Engine Rated RPM
1900 RPM
Air Filter
3- Stage Oil Bath Type
PTO HP
38.4 HP
Cooling System
Water Cooled
Swaraj 843 XM Transmission(GearBox)
Clutch Type
Single / IPTO
Transmission Type
Constant Mesh / PCM
Gear Box
8 Forward + 2 Reverse
Battery
12 V 88 Ah
Alternator
Starter Motor
Forward Speed
2.3 - 29.3 kmph
Reverse Speed
2.7 - 10.6 kmph
Swaraj 843 XM Brakes
Brake Type
Oil Immersed Brakes
Swaraj 843 XM Steering
Steering Type
Mechanical / Power Steering (Optional)
Swaraj 843 XM Power Take Off
PTO Type
Live Single Speed Pto
PTO rpm
540
Swaraj 843 XM Fuel Capacity
Fuel Tank Capacity
56 litre
Swaraj 843 XM Dimension and Weight
Weight
1830 KG
Wheelbase
1980 MM
Overall Length
3430 MM
Tractor Width
17170 MM
Ground Clearance
293 MM
Swaraj 843 XM Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1500 kg
3 Point Linkage(Mm)
ADDC, I and II type implement pins.
Swaraj 843 XM Tyre Size
Front
6.00 X 16
Rear
13.6 X 28
Swaraj 843 XM Additional Features
Accessories
6000 hours/ 6 Year
Status
Launched
