| Brand | Swaraj |
|---|---|
| Cylinder | 4 |
| HP Category | 42HP |
| Gear Box | 8 Forward + 2 Reverse |
| Brakes | Oil Immersed Brakes |
| Warranty | 2000 Hour or 2 Year |

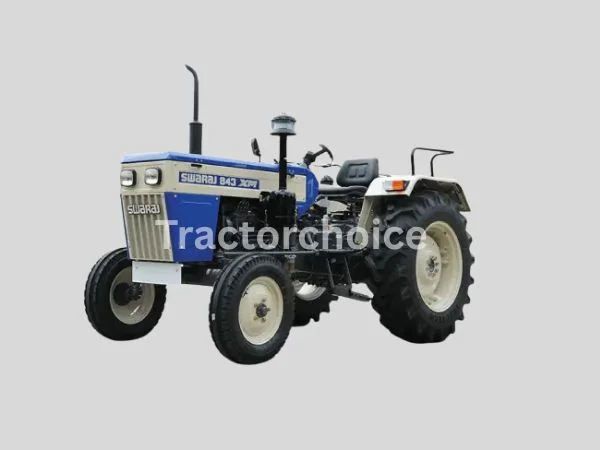

Swaraj 843 XM-OSM
Swaraj 843 XM-OSM FULL SPECIFICATION
Swaraj 843 XM-OSM Engine
No. Of Cylinder
4
HP Category
42 HP
Capacity CC
2730 CC
Engine Rated RPM
1900 RPM
Air Filter
3- Stage Oil Bath Type
PTO HP
38.4 HP
Cooling System
Water Cooled
Swaraj 843 XM-OSM Transmission(GearBox)
Clutch Type
Single / Dual clutch
Transmission Type
Constant Mesh
Gear Box
8 Forward + 2 Reverse
Battery
12 V, 88 Ah
Alternator
Starter motor
Forward Speed
2.3 - 29.3 kmph
Reverse Speed
2.7 - 10.6 kmph
Swaraj 843 XM-OSM Brakes
Brake Type
Oil Immersed Brakes
Swaraj 843 XM-OSM Steering
Steering Type
Mechanical/Power Steering (optional)
Steering Adjustment
Single Drop Arm
Swaraj 843 XM-OSM Power Take Off
PTO Type
6 Spline
PTO rpm
540
Swaraj 843 XM-OSM Fuel Capacity
Fuel Tank Capacity
45 litre
Swaraj 843 XM-OSM Dimension and Weight
Weight
1930 KG
Wheelbase
2060 MM
Overall Length
3370 MM
Tractor Width
1765 MM
Ground Clearance
410 MM
Swaraj 843 XM-OSM Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1200 Kg
3 Point Linkage(Mm)
ADDC, I and II type implement pins
Swaraj 843 XM-OSM Tyre Size
Front
6.00 X 16
Rear
12.4 X 28 / 13.6 X 28
Swaraj 843 XM-OSM Additional Features
Accessories
2000 Hours or 2 Year
Status
Launched
