| Brand | Swaraj Tractors |
|---|---|
| Cylinder | 3 |
| HP Category | 70HP |
| Gear Box | 12 Forward + 3 Reverse |
| Brakes | Oil-Immersed multi disc brakes |
| Warranty |

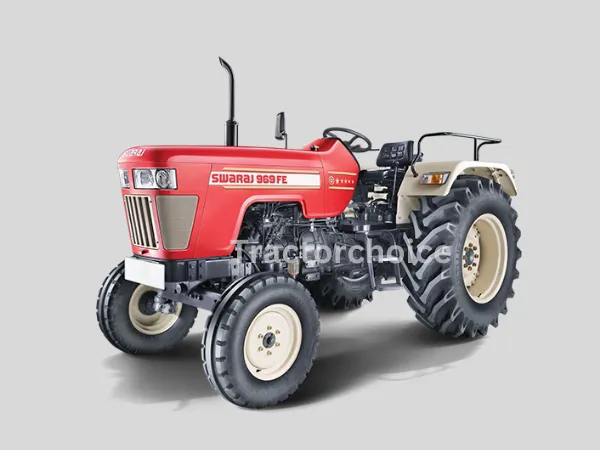

SWARAJ 969 FE
SWARAJ 969 FE FULL SPECIFICATION
SWARAJ 969 FE Engine
No. Of Cylinder
3
HP Category
70
Capacity CC
3478 CC
Engine Rated RPM
2000
Max Torque
262 NM
Air Filter
Dry Type
PTO HP
54 HP
Cooling System
Water Cooled
SWARAJ 969 FE Transmission(GearBox)
Clutch Type
Double Clutch
Transmission Type
Synchromesh, Side Shift
Gear Box
12 Forward + 3 Reverse
Battery
12 V 100 Ah
Alternator
Starter Motor
Forward Speed
0.9 - 33.0 kmph
Reverse Speed
2.0 - 24.0 kmph
SWARAJ 969 FE Brakes
Brake Type
Oil-Immersed multi disc brakes
SWARAJ 969 FE Steering
Steering Type
Power Steering
SWARAJ 969 FE Power Take Off
PTO Type
Multi Speed & Reverse PTO
PTO rpm
540 & 540 E
SWARAJ 969 FE Fuel Capacity
Fuel Tank Capacity
60 litre
SWARAJ 969 FE Dimension and Weight
Weight
2690 KG
Wheelbase
2210 MM
Overall Length
3705 MM
Tractor Width
1915 MM
Ground Clearance
367 MM
SWARAJ 969 FE Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
2200 Kg
3 Point Linkage(Mm)
CAT-2
SWARAJ 969 FE Tyre Size
Front
7.50 X 16
Rear
16.9 X 28
SWARAJ 969 FE Additional Features
Accessories
2000 Hours or 2 Year
Status
Launched
