| Brand | New Holland Tractors |
|---|---|
| Cylinder | 3 |
| HP Category | 50HP |
| Gear Box | 8+2 / 12+3 CR* / 12+3 UG* |
| Brakes | Oil-Immersed Multi Disc Brakes |
| Warranty | 6000 Hours or 6 Year |

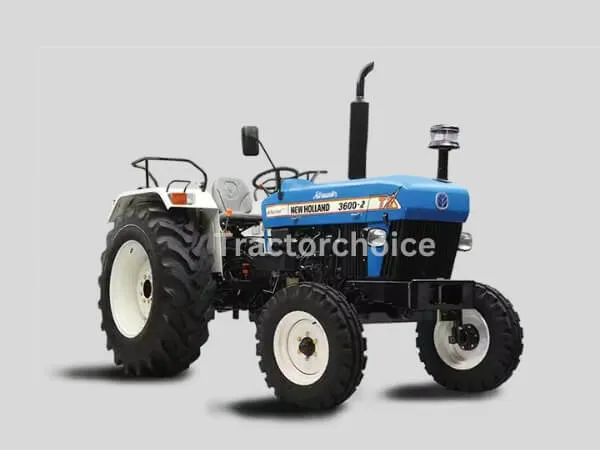

New Holland 3600-2 TX All Rounder Plus+
MAIN FEATURES
- FPT Engine- 49.5 HP
- Double Clutch with Independent PTO Lever
- 1700 Kg lifting capacity*
- 12F+3R UG Gearbox
- Sensomatic24 with 24 sensing points
- Lift-O-Matic with Height Limiter
- DRC valve & Isolator valve
New Holland 3600-2 TX All Rounder Plus+ FULL SPECIFICATION
New Holland 3600-2 TX All Rounder Plus+ Engine
No. Of Cylinder
3
HP Category
50 HP
Capacity CC
3070 CC
Engine Rated RPM
2100 RPM
Air Filter
Oil Bath With Pre Cleaner
PTO HP
46 HP
Cooling System
Water Cooled
New Holland 3600-2 TX All Rounder Plus+ Transmission(GearBox)
Clutch Type
Double Clutch with Independent PTO Lever
Transmission Type
Constant Mesh
Gear Box
8 Forward + 2 Reverse/ 12 Forward + 3 Reverse
Battery
100 Ah
Alternator
55 Amp
Forward Speed
1.87 - 33.83 kmph
Reverse Speed
2.71 - 15.16 kmph
New Holland 3600-2 TX All Rounder Plus+ Brakes
Brake Type
Oil immersed multi disc brakes
New Holland 3600-2 TX All Rounder Plus+ Steering
Steering Type
Power / Mechanical Steering
New Holland 3600-2 TX All Rounder Plus+ Power Take Off
PTO Type
GSPTO / RPTO*
PTO rpm
540 @ 1800 rpm
New Holland 3600-2 TX All Rounder Plus+ Fuel Capacity
Fuel Tank Capacity
60 litre
New Holland 3600-2 TX All Rounder Plus+ Dimension and Weight
Weight
2100 KG
Wheelbase
2040 MM
Overall Length
3465 MM
Tractor Width
1815 MM
Ground Clearance
445 MM
New Holland 3600-2 TX All Rounder Plus+ Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1700/2000 kg
3 Point Linkage(Mm)
DRC valve & Isolator valve
New Holland 3600-2 TX All Rounder Plus+ Tyre Size
Front
6.50 x 16 / 7.50 x 16
Rear
14.9 x 28 / 16.9 x 28
New Holland 3600-2 TX All Rounder Plus+ Additional Features
Accessories
LED DRL, Side Silencer, Dual Footsteps and new platform with heatguard
Status
Launched
