| Brand | Swaraj |
|---|---|
| Cylinder | 3 |
| HP Category | 40HP |
| Gear Box | 8 Forward + 2 Reverse |
| Brakes | Dry Disc Brakes |
| Warranty |

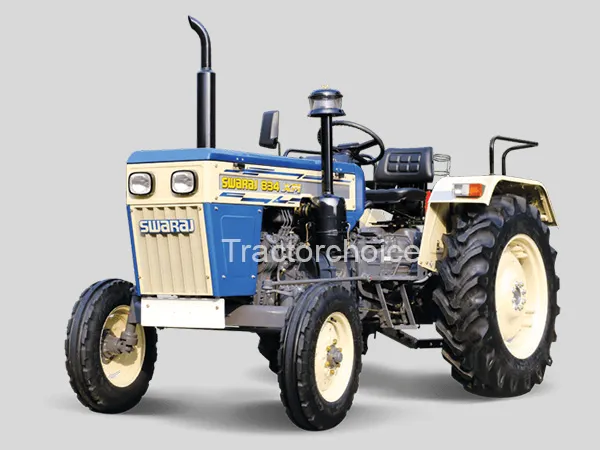

Swaraj 834 XM
Swaraj 834 XM FULL SPECIFICATION
Swaraj 834 XM Engine
No. Of Cylinder
3
HP Category
35 HP
Capacity CC
2592 CC
Engine Rated RPM
1800 RPM
Air Filter
3 stage air cleaner system with cyclonic pre-cleaner, oil bowl an d papaer element
PTO HP
29
Swaraj 834 XM Transmission(GearBox)
Clutch Type
Heavy Durt Single dry plate type
Gear Box
8 Forward + 2 Reverse
Battery
12 V 88 AH
Alternator
starter motor
Forward Speed
2.14 - 27.78 kmph
Reverse Speed
2.68 - 10.52 kmph
Swaraj 834 XM Brakes
Brake Type
Stanrad Dry Disc type / Oil Immersed Brakes (Optional)
Swaraj 834 XM Steering
Steering Type
Mechanical Steering
Swaraj 834 XM Power Take Off
PTO Type
6 Spline/ 21 Spline
PTO rpm
540 / 1000
Swaraj 834 XM Fuel Capacity
Fuel Tank Capacity
60 litre
Swaraj 834 XM Dimension and Weight
Weight
1845 kg
Wheelbase
1930 MM
Overall Length
3475 MM
Tractor Width
1705 MM
Ground Clearance
380 MM
Swaraj 834 XM Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
3500 kg with Dual Assist Ram
3 Point Linkage(Mm)
Automatic Depth Draft Control, Cat-I & II
Swaraj 834 XM Tyre Size
Front
12.4 in × 24 in (315mm × 607mm)
Rear
18.4 in ×30 in (467mm× 762mm)
Swaraj 834 XM Additional Features
Accessories
Tools, Bumper, Ballast Weight, Top Link, Canopy, Drawbar, Hitch
Status
Launched
