| Brand | Swaraj |
|---|---|
| Cylinder | 3 |
| HP Category | 40HP |
| Gear Box | 8 Forward + 2 Reverse |
| Brakes | Dry Disc Brakes |
| Warranty |

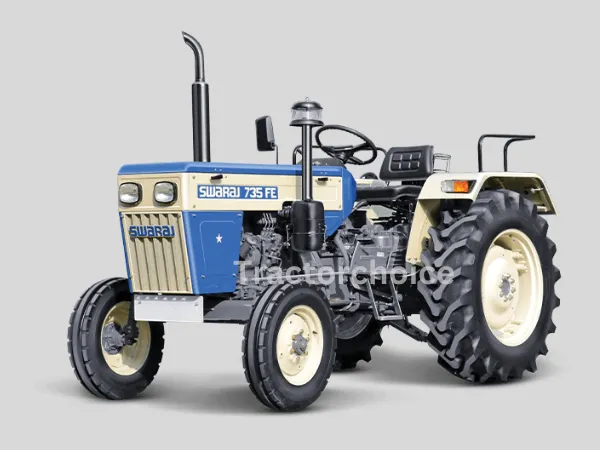

SWARAJ 735 FE
SWARAJ 735 FE FULL SPECIFICATION
SWARAJ 735 FE Engine
No. Of Cylinder
3
HP Category
40 HP
Capacity CC
2734 CC
Engine Rated RPM
1800 RPM
Air Filter
3- Stage Oil Bath Type
PTO HP
32.6
Cooling System
Water Cooled
SWARAJ 735 FE Transmission(GearBox)
Clutch Type
Single / Dual
Transmission Type
Sliding Mesh/PCM
Gear Box
8 Forward + 2 Reverse
Battery
12 V 88 Ah
Alternator
Starter motor
Forward Speed
2.30 - 27.80 kmph
Reverse Speed
2.73 - 10.74 kmph
SWARAJ 735 FE Brakes
Brake Type
Oil immersed brakes
SWARAJ 735 FE Steering
Steering Type
Power/ Manual
Steering Adjustment
Single Drop Arm
SWARAJ 735 FE Power Take Off
PTO Type
Multi Speed PTO
PTO rpm
540 / 1000
SWARAJ 735 FE Fuel Capacity
Fuel Tank Capacity
48 litre
SWARAJ 735 FE Dimension and Weight
Weight
1830 kg
Wheelbase
1945 MM
Overall Length
3560 MM
Tractor Width
1790 MM
Ground Clearance
380 mm
SWARAJ 735 FE Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1650 KG
3 Point Linkage(Mm)
Automatic Depth and Draft Control, for Category-I and II type implement pins.
SWARAJ 735 FE Tyre Size
Front
6.00 X 16
Rear
12.4 X 28 / 13.6 X 28
SWARAJ 735 FE Additional Features
Accessories
Tools, Bumper, Ballast Weight, Top Link, Canopy, Drawbar, Hitch
Status
Launched
