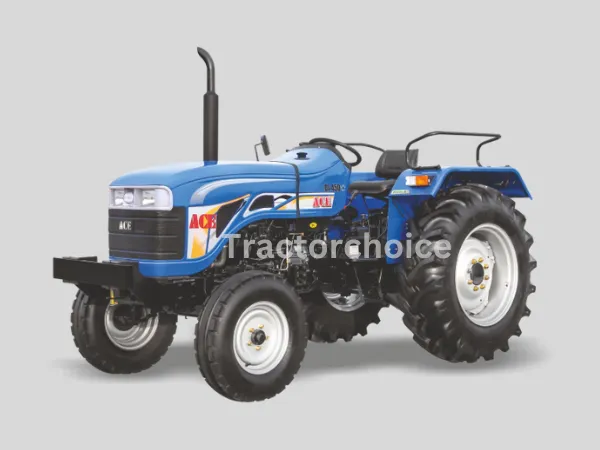

ACE DI-450 STAR
ACE DI-450 STAR FULL SPECIFICATION
ACE DI-450 STAR Engine
No. Of Cylinder
3
HP Category
45 HP
Capacity CC
3120 CC
Engine Rated RPM
2000
Air Filter
Dry Type with clogging sensor
ACE DI-450 STAR Transmission(GearBox)
Clutch Type
Dry Type Dual Clutch
Gear Box
8 Forward + 2 Reverse
Battery
88 Ah-12 V
Alternator
12V- 42 Amp
Forward Speed
2.4 kmph
ACE DI-450 STAR Brakes
Brake Type
Oil Immersed Brakes
ACE DI-450 STAR Steering
Steering Type
Mechanical/Single drop arm
ACE DI-450 STAR Fuel Capacity
Fuel Tank Capacity
55 litres
ACE DI-450 STAR Dimension and Weight
Weight
2010 kg
Wheelbase
2140 mm
Overall Length
3800 mm
Tractor Width
1740 mm
Ground Clearance
430 mm
ACE DI-450 STAR Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1200 kg
ACE DI-450 STAR Tyre Size
Front
6.00 X 16
Rear
13.6 X 28
