| Brand | New Holland Tractors |
|---|---|
| Cylinder | 3 |
| HP Category | 45HP |
| Gear Box | 8 Forward + 2 Reverse |
| Brakes | Mechanical/Oil Immersed Brakes |
| Warranty | 6000 Hours or 6 Year |

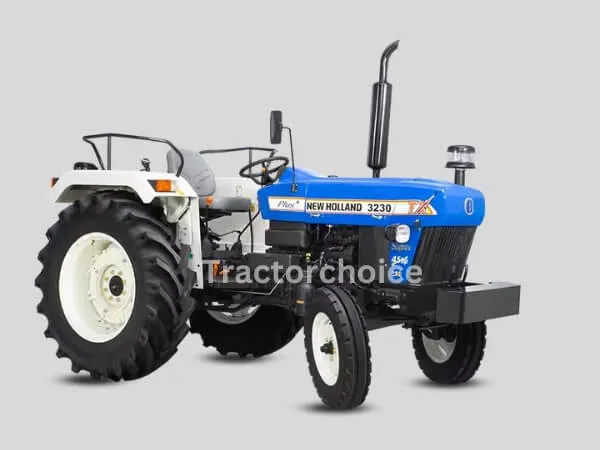

New Holland 3230 TX Super+
MAIN FEATURES
- Max useful power - 45 HP
- PTO Power & 35.4hp
- Drawbar Power
- Max Torque - 160.7 Nm
- Eptraa PTO – 7 speeds PTO
- Independent
- PTO Clutch
- SOFTEK CLUTCH
- Fully Constant Mesh AFD
- HP Hydraulic with Lift-O-Matic & 1800 KG Lift Capacity
- Multisensing with DRC Valve
- Straight Axle Planetary Drive
- 4WD MHD Axle
- Double Metal Face sealing in Trans. - PTO & Rear Axle
- 8+8 Synchro Shuttle
New Holland 3230 TX Super+ FULL SPECIFICATION
New Holland 3230 TX Super+ Engine
No. Of Cylinder
3
HP Category
45 HP
Capacity CC
2500 CC
Engine Rated RPM
2000 RPM
Air Filter
Oil Bath with Pre-Cleaner
PTO HP
41 HP
Cooling System
Water Cooled
New Holland 3230 TX Super+ Transmission(GearBox)
Clutch Type
Single Clutch/Double Clutch with IPTO lever*
Transmission Type
Constant Mesh AFD Side Shift
Gear Box
8 Forward + 2 Reverse/ 8 Forward + 8 Reverse
Battery
75 Ah
Alternator
35 Amp
Forward Speed
2.5 – 30.81 kmph
Reverse Speed
3.11 – 11.30 kmph
New Holland 3230 TX Super+ Brakes
Brake Type
Oil Immersed Multi Disc Brake
New Holland 3230 TX Super+ Steering
Steering Type
Power Steering
New Holland 3230 TX Super+ Power Take Off
PTO Type
Eptraa PTO, Reverse PTO & GSPTO
PTO rpm
540 & 540E
New Holland 3230 TX Super+ Fuel Capacity
Fuel Tank Capacity
46 Liter
New Holland 3230 TX Super+ Dimension and Weight
Weight
1873 KG
Wheelbase
1900 MM
Overall Length
3330 MM
Tractor Width
1970 MM
Ground Clearance
395 MM
New Holland 3230 TX Super+ Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1800 Kg
3 Point Linkage(Mm)
Automatic Depth and Draft Control, Mixed Control, Lift- O-Matic, Response Control, Multiple Sensiti
New Holland 3230 TX Super+ Tyre Size
Front
6.00 X 16 / 6.50 X 16
Rear
13.6 X 28 / 14.9 X 28
New Holland 3230 TX Super+ Additional Features
Accessories
Tools, Bumpher, Top Link, Ballast Weight, Canopy, Drawbar, Hitch
Status
Launched
Similar Tractors
Implements

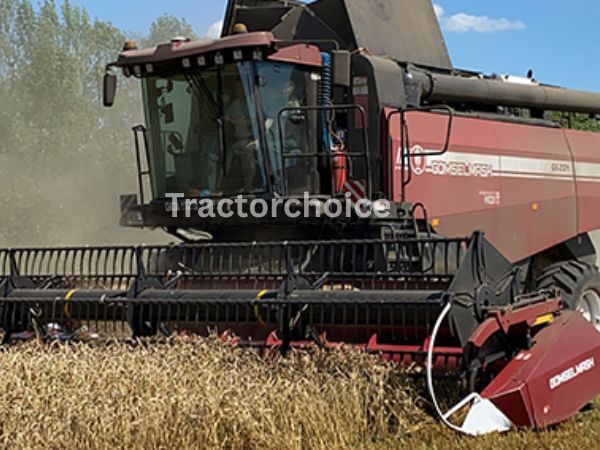

HARVEST
