| Brand | Eicher |
|---|---|
| Cylinder | 3 |
| HP Category | 44HP |
| Gear Box | 8 Forward + 2 Reverse |
| Brakes | Disc Brakes/Oil Immersed Brakes(Optional) |
| Warranty | 2000 Hours or 2 Year |

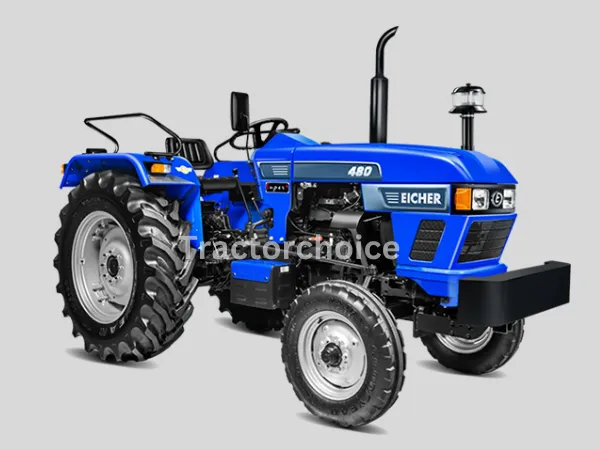

Eicher 480
Apart from extraordinary features, the tractor has many additional excellent qualities which make it more efficient. The rugged gearbox provides superb forward and reverse speed.
Eicher 480 FULL SPECIFICATION
Eicher 480 Engine
No. Of Cylinder
3
HP Category
45 HP
Capacity CC
2500 CC
Engine Rated RPM
2150 RPM
Air Filter
Oil bath type
PTO HP
35.7 HP
Cooling System
Water Cooled
Eicher 480 Transmission(GearBox)
Clutch Type
Single / Dual (Optional)
Transmission Type
Central shift - Combination of constant & sliding mesh, Side Shi
Gear Box
8 Forward + 2 Reverse
Battery
12 V 75 AH
Alternator
12 V 36 A
Forward Speed
12 V 36 A
Reverse Speed
32.3 kmph
Eicher 480 Brakes
Brake Type
Dry Disc / Oil Immersed Brakes ( Optional )
Eicher 480 Steering
Steering Type
Mechanical/Power Steering (optional)
Eicher 480 Power Take Off
PTO Type
Live
PTO rpm
540
Eicher 480 Fuel Capacity
Fuel Tank Capacity
45 litre
Eicher 480 Dimension and Weight
Weight
2042 KG
Wheelbase
1910 MM
Overall Length
3475 MM
Tractor Width
1700 MM
Ground Clearance
360 MM
Eicher 480 Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1650 kg
3 Point Linkage(Mm)
Draft Position And Response Control Links
Eicher 480 Tyre Size
Front
6.00 x 16
Rear
13.6 x 28 / 14.9 x 28
Eicher 480 Additional Features
Accessories
Tool, Toplink, Canopy, Hook, Bumpher, Drawbar
Status
Launched
