| Brand | Farmtrac |
|---|---|
| Cylinder | 3 |
| HP Category | 22HP |
| Gear Box | 9 Forward + 3 Reverse |
| Brakes | Multi Plate Oil Immersed Disc Brakes |
| Warranty | 5000 Hours/ 5 Year |

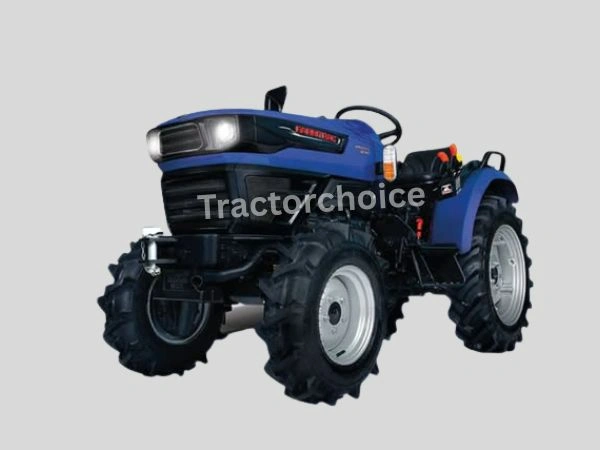

Farmtrac Atom 22
Farmtrac Atom 22 FULL SPECIFICATION
Farmtrac Atom 22 Engine
No. Of Cylinder
3
HP Category
22 HP
Engine Rated RPM
3000 RPM
Air Filter
Dry Type
PTO HP
18.7 HP
Cooling System
Water Cooled
Farmtrac Atom 22 Transmission(GearBox)
Clutch Type
Single Clutch
Transmission Type
Constant Mesh
Gear Box
9 Forward + 3 Reverse
Forward Speed
1.3 - 22.3 kmph
Reverse Speed
1.8 -11.1 kmph
Farmtrac Atom 22 Brakes
Brake Type
Multi Plate Oil Immersed Brakes
Farmtrac Atom 22 Steering
Steering Type
Balanced Power Steering
Farmtrac Atom 22 Power Take Off
PTO Type
6 Splines
PTO rpm
540 ,540 E @ 2504, 2035
Farmtrac Atom 22 Fuel Capacity
Fuel Tank Capacity
24 Litres
Farmtrac Atom 22 Dimension and Weight
Weight
900 KG
Wheelbase
1430 MM
Overall Length
2760 MM
Tractor Width
990 MM
Ground Clearance
300 MM
Farmtrac Atom 22 Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
750 Kg
Farmtrac Atom 22 Tyre Size
Front
5.00 X 12
Rear
8.00 X 18
Farmtrac Atom 22 Additional Features
Accessories
5000 Hours/ 5 Year
Status
Launched
