| Brand | Farmtrac Tractors |
|---|---|
| Cylinder | 3 |
| HP Category | 26HP |
| Gear Box | 9 Forward + 3 Reverse |
| Brakes | Multi Plate Oil Immersed Brakes |
| Warranty | 3000 Hour or 3 Year |

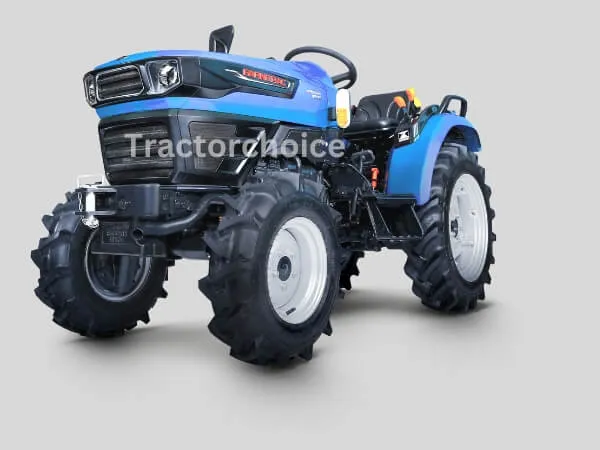

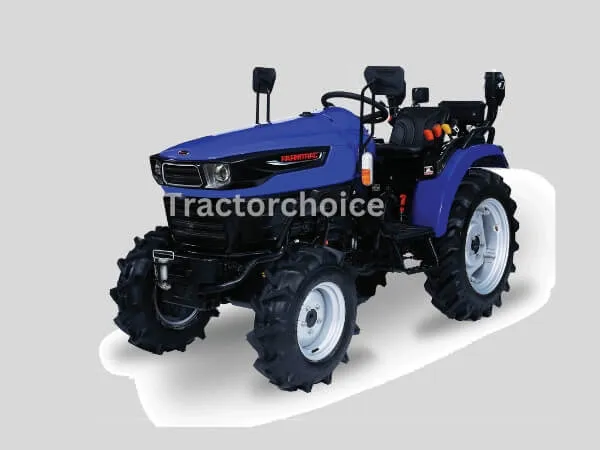

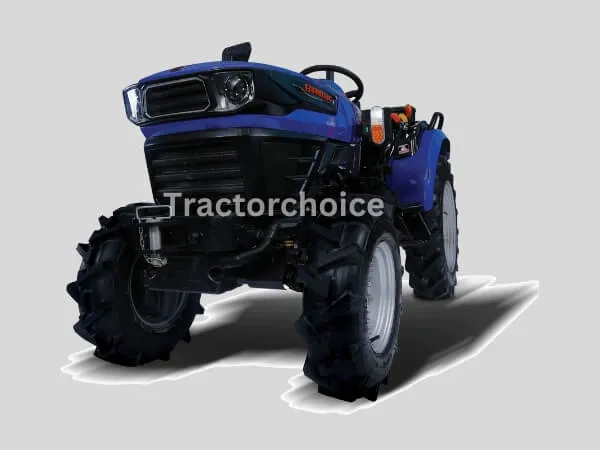

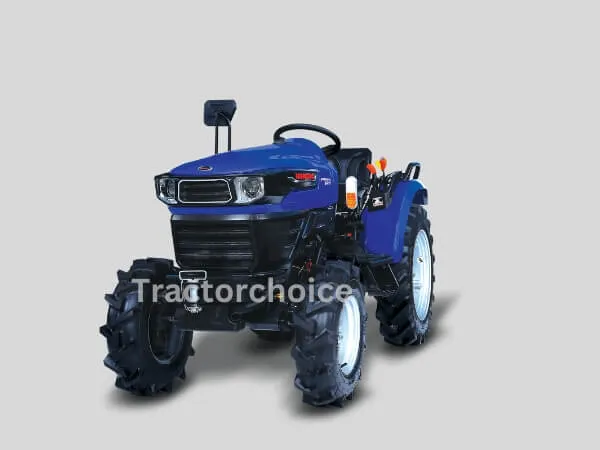

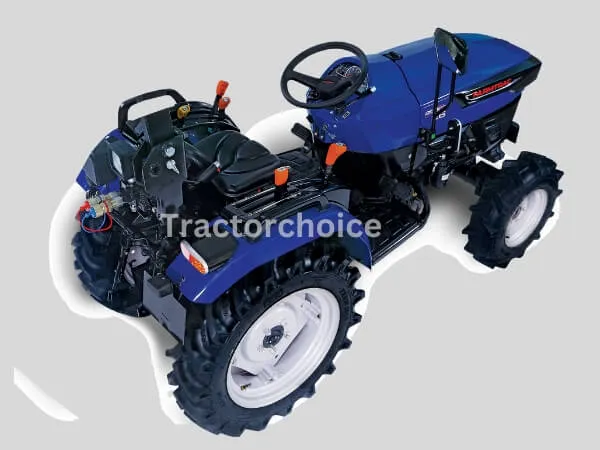

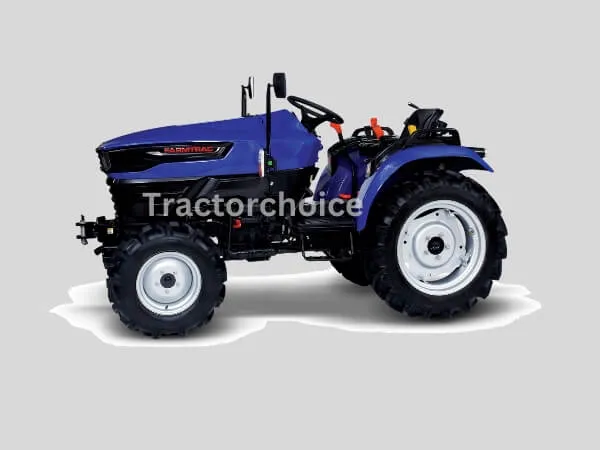

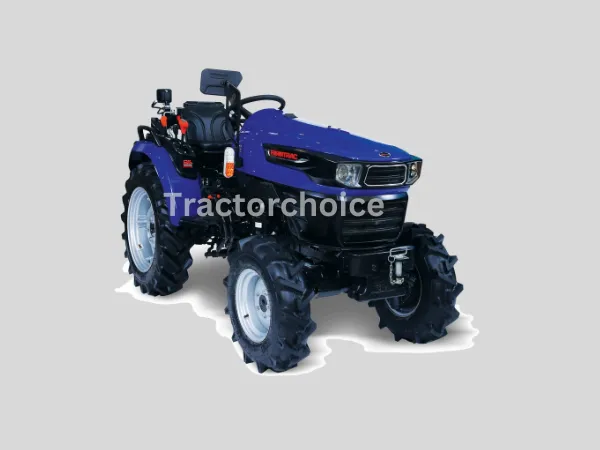

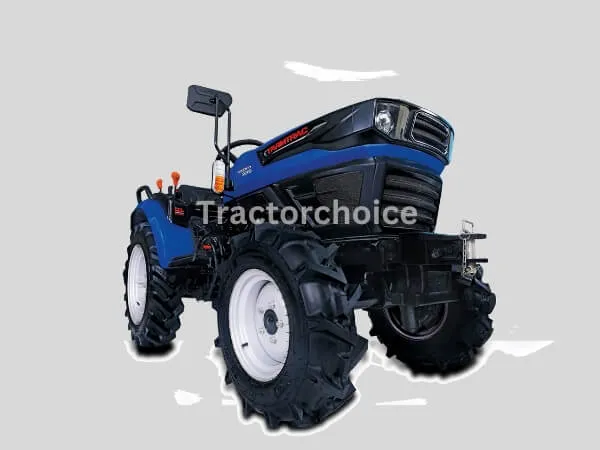

Farmtrac Tractors Farmtrac Atom 26
Farmtrac Atom 26 FULL SPECIFICATION
Farmtrac Tractors Farmtrac Atom 26 Engine
No. Of Cylinder
3
HP Category
26 HP
Engine Rated RPM
2700 RPM
Farmtrac Tractors Farmtrac Atom 26 Transmission(GearBox)
Clutch Type
Single
Transmission Type
Constant mesh
Gear Box
9 Forward + 3 Reverse
Forward Speed
1.5 - 22.5 kmph
Reverse Speed
1.8-11.2 kmph
Rear Axle
Inboard Reduction
Farmtrac Tractors Farmtrac Atom 26 Brakes
Brake Type
Multi Plate Oil Immersed Brake
Farmtrac Tractors Farmtrac Atom 26 Steering
Steering Type
Balanced Power Steering
Farmtrac Tractors Farmtrac Atom 26 Power Take Off
PTO Type
540 and 540 E
PTO rpm
2504 and 2035
Farmtrac Tractors Farmtrac Atom 26 Fuel Capacity
Fuel Tank Capacity
24 Litre
Farmtrac Tractors Farmtrac Atom 26 Dimension and Weight
Weight
990 (Unballasted) KG
Wheelbase
1550 MM
Overall Length
2730 MM
Tractor Width
1090 MM
Ground Clearance
310 MM
Farmtrac Tractors Farmtrac Atom 26 Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
750 kg
Hydraulics Control
ADDC
Farmtrac Tractors Farmtrac Atom 26 Tyre Size
Front
6.0 X 12 / 5 X 12
Rear
8.3 X 20 / 8 X 18
Farmtrac Tractors Farmtrac Atom 26 Additional Features
Accessories
Ballast weight, Canopy, DrawBar
Status
Launched
