| Brand | JOHN DEERE |
|---|---|
| Cylinder | 3 |
| HP Category | 55HP |
| Gear Box | 8 Forward+4 Reverse |
| Brakes | Oil-Immersed Disc Brakes |
| Warranty | 5000 Hours or 5 Year |

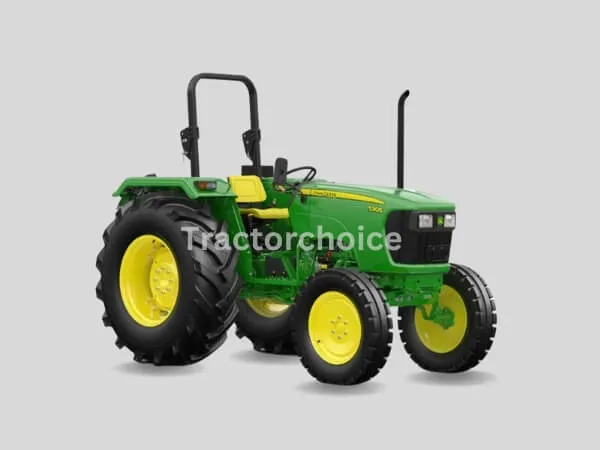

John Deere 5305-4WD
Welcome Buyers, this post is about John deere 5305 in India this tractor is manufactured by John Deere Tractor Manufacturer. John Deere 5305 has single/dual clutch, which provides smooth and easy functioning.
John Deere 5305-4WD FULL SPECIFICATION
John Deere 5305-4WD Engine
No. Of Cylinder
3
HP Category
55 HP
Engine Rated RPM
2100 RPM
Air Filter
Dry Type, Dual Filter
PTO HP
46.8 HP
Cooling System
Coolant Cooled with overflow reservoir
John Deere 5305-4WD Transmission(GearBox)
Clutch Type
Single / Dual (Optional)
Transmission Type
Collar Shift
Gear Box
8 Forward + 4 Reverse
Battery
12 V 88 AH
Alternator
12 V 40 Ah
Forward Speed
2.6 – 32.4 kmph
Reverse Speed
3.5 -13.6 kmph
John Deere 5305-4WD Brakes
Brake Type
Oil immersed Disc Brakes
John Deere 5305-4WD Steering
Steering Type
Power
John Deere 5305-4WD Power Take Off
PTO Type
Independent, 6 Splines
PTO rpm
540@1600/2100 ERPM
John Deere 5305-4WD Fuel Capacity
Fuel Tank Capacity
60 litre
John Deere 5305-4WD Dimension and Weight
Weight
1920 KG
Wheelbase
1960 MM
Overall Length
3420 MM
Tractor Width
1810 MM
Ground Clearance
430 MM
John Deere 5305-4WD Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1600 Kgf
3 point Linkage
Automatic Depth and Draft Control
John Deere 5305-4WD Tyre Size
Front
6.00 x 16.0 / 7.50 x 16.0
Rear
14.9 x 28 / 16.9 x 28
John Deere 5305-4WD Additional Features
Accessories
Front Weight, Canopy, Canopy Holder. Drawbar, Hitch, Toplink
Status
Launched
