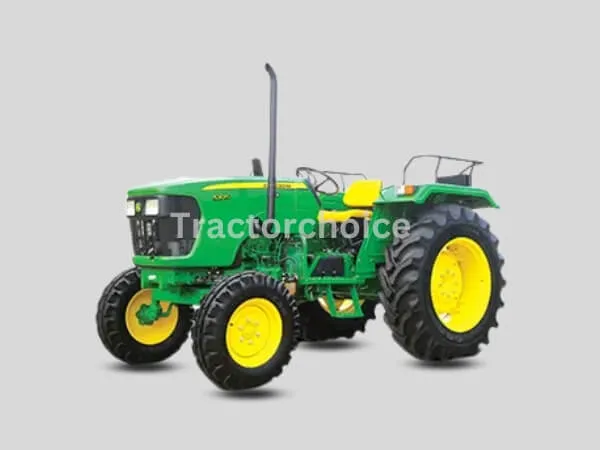

John Deere 5305

Rating: 5.00
Brand JOHN DEERE
Cylinder 3
HP Category 55HP
Gear Box 8 Forward+4 Reverse
Brakes Oil Immersed Disc Brakes
Warranty 5000 Hours or 5 Year
Ad

John Deere 5305

A brief explanation about John Deere 5305 in India


John Deere 5305 is an easy to operate and fast-response tractor. With all the modern technology employed this model has become the choice of today's farmers. It has an extraordinary output of 55 HP. Also, the latest engine in the tractor is mated to a 12-speed gearbox setup which has eight forward gears and four reverse gears. This entire gear ratio helps to achieve the highest performance on the field as well as on-road. John Deere 5305 is a 2-wheeled drive model that is supported via the rear 2 wheels. In addition, it has 1600 KG of lifting power. To offer maximum productivity and comfort to its users this model is also available with a power steering option.


Special features:

This tractor is supported by a three-cylinder engine unit having a 3022 CC capacity. This engine is also capable of offering an output of 55 HP at a rated RPM of 2400. Apart from this, it has a side shift type gearbox with a 12-speed gearbox. Moreover, it has a Power Take Off HP of 47 HP at 540 RPM and a six-spline PTO.

John Deere 5305 provides maximum efficiency, it has a tyre size of 6.5 x 16 / 7.5 x 16-inches and a 14.9 x 28 / 16.9 x 28-inches tyre size in the front and rear respectively. With its 60-litres large fuel tank, it can deliver long productive hours on the field.

Additionally, it has a 1960 mm wheelbase that helps to increase stability both on as well as off-road. The overall weight of the tractor is 1920 KG and a length of 3420 mm.



Why consider buying a John Deere 5305 in India?


John Deere is a recognized international brand for tractors and farm equipment. John Deere has various outstanding models, but the John Deere 5305 is among the top offerings by John Deere. This tractor reflects the high quality, reliability and power that users expect. John Deere is committed to providing reliable, durable and efficient engines and tractors built to help customers grow their businesses.


At Tractorbird you get all the latest information related to all types of tractors, implements and other farm equipment. Tractorbird also provides information as well as assistance on tractor prices, tractor comparison, tractor-related photos, videos, blogs and updates.


John Deere 5305 FULL SPECIFICATION

John Deere 5305 Engine

No. Of Cylinder

3

HP Category

55 HP

Engine Rated RPM

2100 RPM

Air Filter

Dry Type, Dual Filter

PTO HP

46.8 HP

Cooling System

Coolant Cooled with overflow reservoir

John Deere 5305 Transmission(GearBox)

Clutch Type

Single / Dual (Optional)

Transmission Type

Collar Shift

Gear Box

8 Forward + 4 Reverse

Battery

12 V 88 AH

Alternator

12 V 40 Ah

Forward Speed

2.6 – 32.4 kmph

Reverse Speed

3.5 -13.6 kmph

John Deere 5305 Brakes

Brake Type

Oil immersed Disc Brakes

John Deere 5305 Steering

Steering Type

Power

John Deere 5305 Power Take Off

PTO Type

Independent, 6 Splines

PTO rpm

540@1600/2100 ERPM

John Deere 5305 Fuel Capacity

Fuel Tank Capacity

60 litre

John Deere 5305 Dimension and Weight

Weight

1920 KG

Wheelbase

1960 MM

Overall Length

3420 MM

Tractor Width

1810 MM

Ground Clearance

430 MM

John Deere 5305 Lifting Capacity(Hydraulics)

Lifting Capacity in Kg

1600 Kgf

3 point Linkage

Automatic Depth and Draft Control

John Deere 5305 Tyre Size

Front

6.00 x 16.0 / 7.50 x 16.0

Rear

14.9 x 28 / 16.9 x 28

John Deere 5305 Additional Features

Accessories

Front Weight, Canopy, Canopy Holder. Drawbar, Hitch, Toplink

Status

Launched
