| Brand | Massey Ferguson Tractors |
|---|---|
| Cylinder | 3 |
| HP Category | 58HP |
| Gear Box | 8 Forward + 8 Reverse/8 Forward + 2 Reverse |
| Brakes | Oil Immersed Brakes |
| Warranty | 4 (2 Yrs Stnd.+ 2 Yrs Extd.) Year |

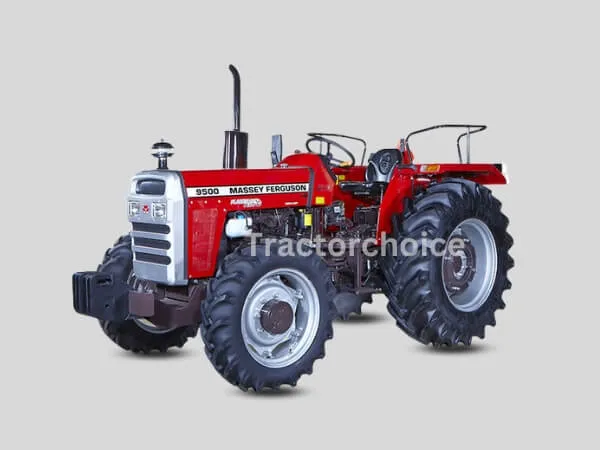

Massey Ferguson Tractors Massey Ferguson 9500 4WD
Massey Ferguson 9500 4WD steering type is Power Steering from that tractor gets easy to control and fast response. These options create it sensible for implements like cultivator, rotavator, plough, planter, and others.
Massey Ferguson 9500 4WD FULL SPECIFICATION
Massey Ferguson Tractors Massey Ferguson 9500 4WD Engine
No. Of Cylinder
3
HP Category
58 HP
Capacity CC
2700 CC
PTO HP
55 HP
Massey Ferguson Tractors Massey Ferguson 9500 4WD Transmission(GearBox)
Clutch Type
Dual
Transmission Type
Comfimesh
Gear Box
8 Forward + 8 Reverse/8 Forward + 2 Reverse
Battery
12 V 88 AH
Alternator
12 V 35 A
Forward Speed
31.3 kmph
Reverse Speed
12.9 kmph
Massey Ferguson Tractors Massey Ferguson 9500 4WD Brakes
Brake Type
Oil Immersed Brakes
Massey Ferguson Tractors Massey Ferguson 9500 4WD Steering
Steering Type
Power
Massey Ferguson Tractors Massey Ferguson 9500 4WD Power Take Off
PTO Type
Live 6 Spline Single Speed PTO
PTO rpm
540 RPM @ 1790 ERPM
Massey Ferguson Tractors Massey Ferguson 9500 4WD Fuel Capacity
Fuel Tank Capacity
60 litre
Massey Ferguson Tractors Massey Ferguson 9500 4WD Dimension and Weight
Weight
2660 KG
Wheelbase
1972 MM
Overall Length
3914 MM
Tractor Width
1850 MM
Ground Clearance
379 MM
Massey Ferguson Tractors Massey Ferguson 9500 4WD Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
2050 kgf
3 point Linkage
Draft, position and response control.Links fitted with Cat 1 and Cat 2 balls (Combi Ball)
Massey Ferguson Tractors Massey Ferguson 9500 4WD Tyre Size
Front
9.50 x 24
Rear
16.9 x 28
Massey Ferguson Tractors Massey Ferguson 9500 4WD Additional Features
Accessories
Tool, Toplink, Canopy, Hook, Bumpher, Drawbar
Status
Launched
