| Brand | New Holland |
|---|---|
| Cylinder | 3 |
| HP Category | 55HP |
| Gear Box | 8 Forward + 2 Reverse/ 12 Forward + 3 Reverse |
| Brakes | Mechanically Actuated Oil Immersed Multi Disc |
| Warranty | N/A |

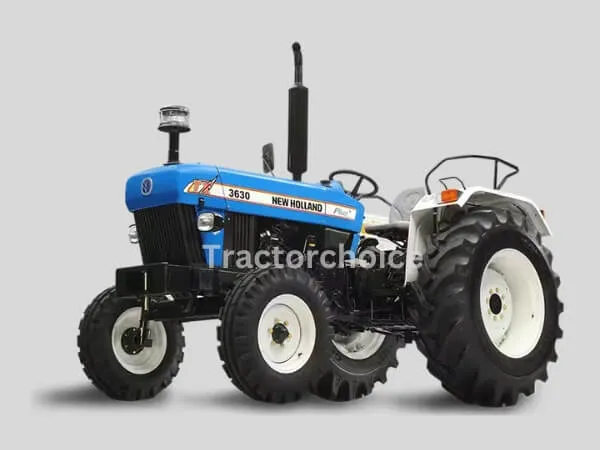

New Holland 3630 TX Plus
New Holland 3630 TX Plus FULL SPECIFICATION
New Holland 3630 TX Plus Engine
No. Of Cylinder
3
HP Category
55 HP
Capacity CC
2992CC
Engine Rated RPM
2300 RPM
Air Filter
Dry Type Dual Element
PTO HP
46.8 HP
Cooling System
Water Cooled
New Holland 3630 TX Plus Transmission(GearBox)
Clutch Type
Double Clutch with Independent Clutch Lever
Transmission Type
Fully Constant mesh / Partial Synchro mesh*
Gear Box
8 Forward + 2 Reverse/ 12 Forward + 3 Reverse
Battery
88 Ah
Alternator
55 Amp
Forward Speed
0.94 - 31.60 kmph
Reverse Speed
1.34 - 14.86 kmph
New Holland 3630 TX Plus Brakes
Brake Type
Mechanically Actuated Oil Immersed Multi Disc Brakes
New Holland 3630 TX Plus Steering
Steering Type
Power Steering
New Holland 3630 TX Plus Power Take Off
PTO Type
540 & GSPTO or RPTO*
New Holland 3630 TX Plus Fuel Capacity
Fuel Tank Capacity
60 litre
New Holland 3630 TX Plus Dimension and Weight
Weight
2060 KG
Wheelbase
2045 MM
Ground Clearance
445 MM
New Holland 3630 TX Plus Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1700 Kg / 2000 Kg*
3 Point Linkage(Mm)
Category I & II, Automatic Depth & Draft Control
New Holland 3630 TX Plus Tyre Size
Front
7.50x16(0.190m x 0.406m) / 9.5x24*(0.241m x 0.610m)
Rear
14.9x28(0.378m x 0.711m) / 16.9x28*(0.429m x 0.711m)
New Holland 3630 TX Plus Additional Features
Status
Launched
