| Brand | New Holland Tractors |
|---|---|
| Cylinder | 3 |
| HP Category | 47HP |
| Gear Box | 8 Forward + 2 Reverse |
| Brakes | Oil Immersed Brakes |
| Warranty | 6000 Hours or 6 Year |

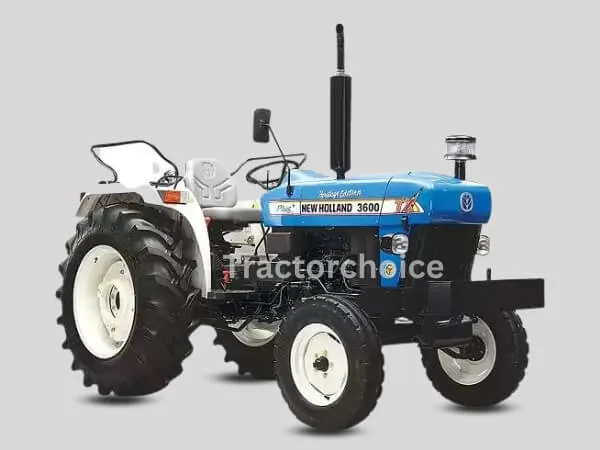

New Holland 3600 Tx Heritage Edition
MAIN FEATURES
- Max useful power - 43hp PTO
- Power & 38.32hp Drawbar Power
- Max Torque - 167.9 Nm
- Eptraa PTO – 7 speeds PTO
- Independent PTO Clutch
- SOFTEK CLUTCH
- Fully Constant Mesh AFD
- HP Hydraulic with Lift-O-Matic &
- 1800 KG Lift Capacity
- Multisensing with DRC Valve
- Straight Axle Planetary Drive
- 4WD MHD Axle
- Double Metal Face sealing in
- Trans. - PTO & Rear Axle
- 8+8 Synchro Shuttle
- Min turning radius - 2.8mt (2WD)
New Holland 3600 Tx Heritage Edition FULL SPECIFICATION
New Holland 3600 Tx Heritage Edition Engine
No. Of Cylinder
3
HP Category
47 HP
Capacity CC
2931 CC
Engine Rated RPM
2100 RPM
Air Filter
Oil Bath with Pre-Cleaner
PTO HP
43 HP
New Holland 3600 Tx Heritage Edition Transmission(GearBox)
Clutch Type
Single / Dual (Optional)
Transmission Type
Synchromesh
Gear Box
8 Forward + 2 Reverse
Battery
88 Ah
Alternator
35 Amp
Forward Speed
2.80 - 31.20 kmph
Reverse Speed
2.80 - 10.16 kmph
New Holland 3600 Tx Heritage Edition Brakes
Brake Type
Real Oil Immersed Brakes
New Holland 3600 Tx Heritage Edition Steering
Steering Type
Power Steering
New Holland 3600 Tx Heritage Edition Power Take Off
PTO Type
Multi Speed PTO
PTO rpm
540, 540 E, Reverse Pto
New Holland 3600 Tx Heritage Edition Fuel Capacity
Fuel Tank Capacity
46 Liter
New Holland 3600 Tx Heritage Edition Dimension and Weight
Weight
2040 KG
Wheelbase
1955 MM
Overall Length
3470 MM
Tractor Width
1720 MM
Ground Clearance
425 MM
New Holland 3600 Tx Heritage Edition Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1800 Kg
Hydraulics Control
HP Hydraulic with Lift-O-Matic; Multi Sensing Point
New Holland 3600 Tx Heritage Edition Tyre Size
Front
6.00 X 16 / 6.50 X 16
Rear
13.6 x 28/14.9 x 28
New Holland 3600 Tx Heritage Edition Additional Features
Accessories
Front Bumpher, Adjustable hook, Drawbar
Status
Launched
