| Brand | New Holland Tractors |
|---|---|
| Cylinder | 3 |
| HP Category | 35HP |
| Gear Box | 8 Forward + 2 Reverse |
| Brakes | Mechanical, Real Oil Immersed Brakes |
| Warranty | 6000 Hours or 6 Year |

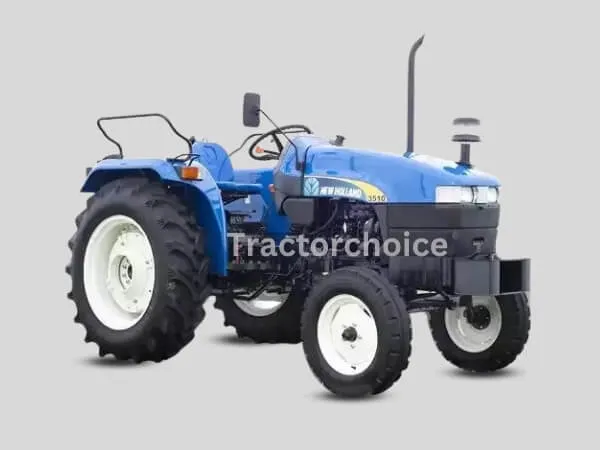

New Holland 3510
MAIN FEATURES
- Max useful power - 33hp PTO Power & 27.1hp Drawbar Power
- Max Torque - 140.0 Nm
- 540 Standard, 540 Economy*, Reverse PTO & Ground Speed PTO
- Independent PTO Clutch Lever
- Diaphragm Clutch in Single Clutch
- Constant Mesh AFD
- Lift-O-Matic & 1500 KG Lift Capacity
- Multisensing with DRC Valve
- Straight Axle Planetary Drive
New Holland 3510 FULL SPECIFICATION
New Holland 3510 Engine
No. Of Cylinder
3
HP Category
35 HP
Capacity CC
2365 CC
Engine Rated RPM
2000 RPM
Air Filter
Oil Bath with Pre Cleaner
PTO HP
33 HP
New Holland 3510 Transmission(GearBox)
Clutch Type
Single
Transmission Type
Fully Constant Mesh AFD
Gear Box
8 Forward + 2 Reverse
Battery
75Ah
Alternator
35 Amp
Forward Speed
2.54-28.16 kmph
Reverse Speed
3.11-9.22 kmph
New Holland 3510 Brakes
Brake Type
Mechanical, Real Oil Immersed Brakes
New Holland 3510 Steering
Steering Type
Mechanical/Power Steering (optional)
New Holland 3510 Power Take Off
PTO Type
GSPTO and Reverse PTO
PTO rpm
540
New Holland 3510 Fuel Capacity
Fuel Tank Capacity
62 Iitre
New Holland 3510 Dimension and Weight
Weight
1770 KG
Wheelbase
1920 MM
Overall Length
3410 MM
Tractor Width
1690 MM
Ground Clearance
366 MM
New Holland 3510 Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1500 Kgf
3 point Linkage
Draft Control, Position Control, Top Link Sensing, Lift- O-Matic, Response Control, Multiple Sensit
New Holland 3510 Tyre Size
Front
6.00 x 16
Rear
13.6 x 28
New Holland 3510 Additional Features
Accessories
Tools, Bumpher, Ballast Weight, Top Link, Canopy, Hitch, Drawbar
Status
Launched
