| Brand | Swaraj Tractors |
|---|---|
| Cylinder | 3 |
| HP Category | 48HP |
| Gear Box | 8 Forward + 2 Reverse |
| Brakes | Oil Immersed/Dry Disc Brakes |
| Warranty | 2000 Hours or 2 Year |

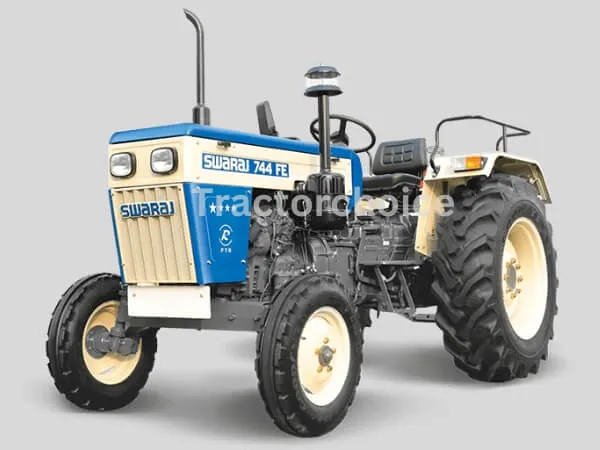

Swaraj 744 FE
Swaraj 744 FE is a 33.55 – 37.28 kW (45-50hp) category tractor which provides real value for money to its owners. It is fitted with a powerful & fuel efficient 3-cylinder water-cooled engine. It comes with multi speed forward and reverse PTO which makes it highly fuel efficient on PTO driven applications like alternator thresher and reaper. The tractor is equipped with host of features like power steering, dual clutch, DCV and adjustable front-axle. Overall, a powerful all-rounder and an excellent performer.
Swaraj 744 FE FULL SPECIFICATION
Swaraj 744 FE Engine
No. Of Cylinder
3
HP Category
47 HP
Capacity CC
3307 CC
Engine Rated RPM
2000 RPM
Air Filter
3- Stage Oil Bath Type
PTO HP
41.8 HP
Cooling System
Water Cooled
Swaraj 744 FE Transmission(GearBox)
Clutch Type
Single / Dual (Optional )
Gear Box
8 Forward + 2 Reverse
Battery
12 V 88 AH
Alternator
Starter motor
Forward Speed
3.1 - 29.2 kmph
Reverse Speed
4.3 - 14.3 kmph
Swaraj 744 FE Brakes
Brake Type
Oil Immersed Brakes (Optional )
Swaraj 744 FE Steering
Steering Type
Mechanical/Power Steering (optional)
Steering Adjustment
Single Drop Arm
Swaraj 744 FE Power Take Off
PTO Type
Multi Speed PTO
PTO rpm
540 / 1000
Swaraj 744 FE Fuel Capacity
Fuel Tank Capacity
56 litre
Swaraj 744 FE Dimension and Weight
Weight
2060 KG
Wheelbase
2095 MM
Overall Length
3455 MM
Tractor Width
1830 MM
Ground Clearance
435 MM
Swaraj 744 FE Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
2000 Kg
3 Point Linkage(Mm)
Automatic Depth & Draft Control, I & II type implement pins.
Swaraj 744 FE Tyre Size
Front
6.00 x 16 / 7.50 x 16
Rear
13.6 x 28 / 14.9 X 28
Swaraj 744 FE Additional Features
Accessories
Tools, Bumper, Ballast Weight, Top Link, Canopy, Hitch, Drawbar
Status
Launched
