| Brand | New Holland |
|---|---|
| Cylinder | 3 |
| HP Category | 75HP |
| Gear Box | 12/20/24 Forward + 12/20/20/24 Reverse |
| Brakes | Mechanically Actuated Oil Immersed Multi Disc |
| Warranty | 6000 Hours or 6 Year |

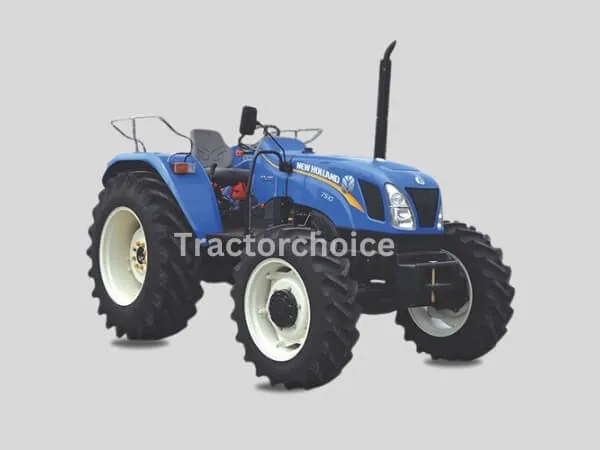

New Holland 7510-4WD
The 7510 2WD/4WD Tractor has a capability to provide high performance on the field. It offers a 60 / 100 litre large fuel tank capacity for long hours on farms.
New Holland 7510-4WD FULL SPECIFICATION
New Holland 7510-4WD Engine
No. Of Cylinder
3
HP Category
75 HP
Air Filter
8" Dry type with dual element
PTO HP
65 HP
New Holland 7510-4WD Transmission(GearBox)
Clutch Type
Double Clutch with Independent Clutch Lever
Transmission Type
Fully Synchromesh
Gear Box
12 Forward + 12 Reverse
Battery
88 Ah
Alternator
55 Amp
Forward Speed
0.29 - 37.43 kmph
Reverse Speed
0.35 - 38.33 kmph
New Holland 7510-4WD Brakes
Brake Type
"Mechanicallly Actuated Oil Immersed Multi Disc Brake- Standard Hydraulically Actuated Oil Immersed
New Holland 7510-4WD Steering
Steering Type
Power Steering
New Holland 7510-4WD Power Take Off
PTO Type
GRPTO
PTO rpm
540 & 540E
New Holland 7510-4WD Fuel Capacity
Fuel Tank Capacity
60 / 100 litre
New Holland 7510-4WD Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
2000 & 2500
3 Point Linkage(Mm)
DRC valve & Isolator valve
New Holland 7510-4WD Tyre Size
Front
12.4 X 24 / 7.50 X 16 / 6.50 X 20
Rear
18.4 x 30 Standard / 16.9 x 30 Optional
New Holland 7510-4WD Additional Features
Accessories
6000 hours/ 6 Year
Status
Launched
