| Brand | New Holland |
|---|---|
| Cylinder | 4 |
| HP Category | 90HP |
| Gear Box | 20 Forward + 12 Reverse Speeds with Creeper |
| Brakes | Hydraulically Actuated Real Oil Immersed Multi Disc Brakes |
| Warranty | 6000 Hours or 6 Year |

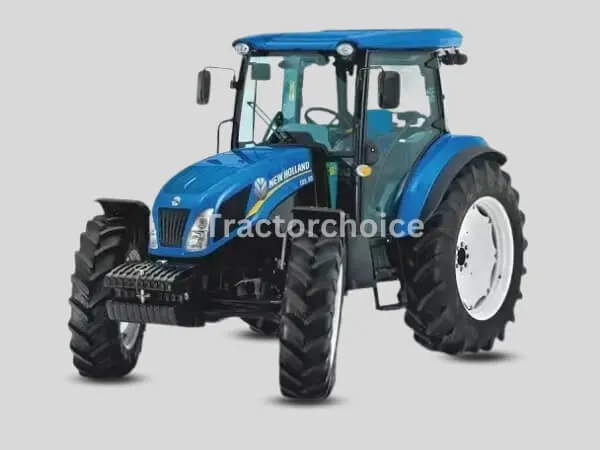

New Holland TD 5.90
The New Holland TD 5.90 is one of the powerful tractors and offers good mileage. New Holland TD 5.90 comes with Double Clutch with Independent Clutch Lever.
New Holland TD 5.90 FULL SPECIFICATION
New Holland TD 5.90 Engine
No. Of Cylinder
4
HP Category
90 HP
Capacity CC
2900 CC
Engine Rated RPM
2200 RPM
Air Filter
Dry type
PTO HP
76.5 HP
Cooling System
Water Cooled
New Holland TD 5.90 Transmission(GearBox)
Clutch Type
Double Clutch with Independent Clutch Lever
Transmission Type
Fully Synchromesh
Gear Box
20 Forward + 12 Reverse Speeds with Creeper
Battery
120 Ah
Alternator
55 Amp
Forward Speed
0.3 - 29.1 kmph
New Holland TD 5.90 Brakes
Brake Type
Hydraulically Actuated Oil Immersed Multi Disc Brakes
New Holland TD 5.90 Steering
Steering Type
Power Steering
New Holland TD 5.90 Power Take Off
PTO Type
Multi Speed
PTO rpm
540 / 540E & Reverse
New Holland TD 5.90 Fuel Capacity
Fuel Tank Capacity
110 litre
New Holland TD 5.90 Dimension and Weight
Weight
3770 KG
Wheelbase
2402 MM
Overall Length
3865 MM
Tractor Width
2110 MM
Ground Clearance
410 MM
New Holland TD 5.90 Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
3565 Kg
3 Point Linkage(Mm)
Automatic Depth and Draft Control, Mixed Control, Lift-O-Matic with Height Limiter
New Holland TD 5.90 Tyre Size
Front
12.4 x 24
Rear
18.4 x 30
New Holland TD 5.90 Additional Features
Accessories
Tools, Bumpher, Ballast Weight, Top Link, Canopy, Hitch, Drawbar
Status
Launched
