| Brand | Swaraj |
|---|---|
| Cylinder | 2 |
| HP Category | 30HP |
| Gear Box | 6 Forward + 2 Reverse |
| Brakes | Heavy Duty Oil Immersed Disc Brakes |
| Warranty | 2000 Hours or 2 Year |

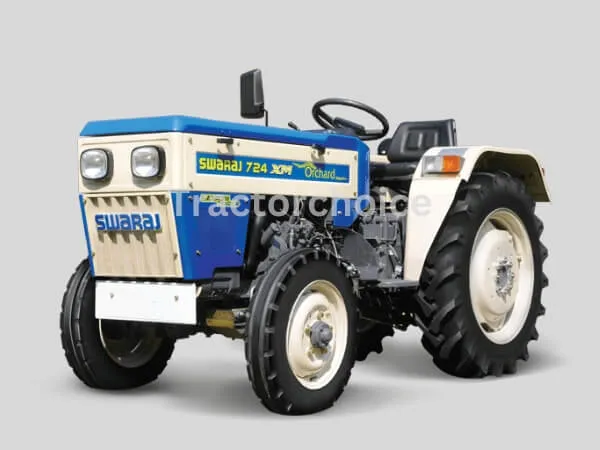

Swaraj 724 XM ORCHARD
724 XM Orchard NT is a 18.64-22.37 kW (25-30hp) category tractor. It is fitted with powerful & fuel efficient two-cylinder water-cooled engine. Its outer to outer width has been narrowed to 1092 mm which makes it highly suitable for inter-cultivation & orchard operations. The 724 XM Orchard NT comes equipped with host of features like power steering with separate steering oil tank, oil immersed brakes that provide operator comfort & safety etc. It is suitable for PTO driven implements like sprayer, rotavator etc. as it comes with a 540 PTO r/min. The adjustable check chains provided in it help in preventing crop damage.
Swaraj 724 XM ORCHARD FULL SPECIFICATION
Swaraj 724 XM ORCHARD Engine
No. Of Cylinder
2
HP Category
25 HP
Capacity CC
1823 CC
Engine Rated RPM
1800 RPM
Air Filter
Dry type, Dual element with dust unloader
PTO HP
21.1 HP
Cooling System
Water Cooled with No loss tank
Swaraj 724 XM ORCHARD Transmission(GearBox)
Clutch Type
Single Clutch with cerametalic lining - 280 mm diameter
Transmission Type
Diaphragm type
Gear Box
6 Forward + 2 Reverse
Battery
12 V 75 AH
Alternator
12 V 36 A
Forward Speed
2.29 - 24.2 kmph
Reverse Speed
2.28 - 9.02 kmph
Swaraj 724 XM ORCHARD Brakes
Brake Type
Heavy Duty Oil Immersed disc Brakes
Swaraj 724 XM ORCHARD Steering
Steering Type
Standard Mechanical Steering with Heavy Duty single drop arm
Steering Adjustment
Single Drop Arm
Swaraj 724 XM ORCHARD Power Take Off
PTO Type
21 Spline
PTO rpm
1000
PTO Power
21.1
Swaraj 724 XM ORCHARD Fuel Capacity
Fuel Tank Capacity
60 litre
Swaraj 724 XM ORCHARD Dimension and Weight
Weight
1430 KG
Wheelbase
1545 MM
Overall Length
2850 MM
Tractor Width
1320 MM
Ground Clearance
235 MM
Swaraj 724 XM ORCHARD Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1000 Kg
3 Point Linkage(Mm)
Automatic Depth & Draft Control
Swaraj 724 XM ORCHARD Tyre Size
Front
5.00 X 15
Rear
11.2 X 24
Swaraj 724 XM ORCHARD Additional Features
Accessories
Tools, Bumpher, Ballast Weight, Top Link, Canopy, Drawbar
Status
Launched
